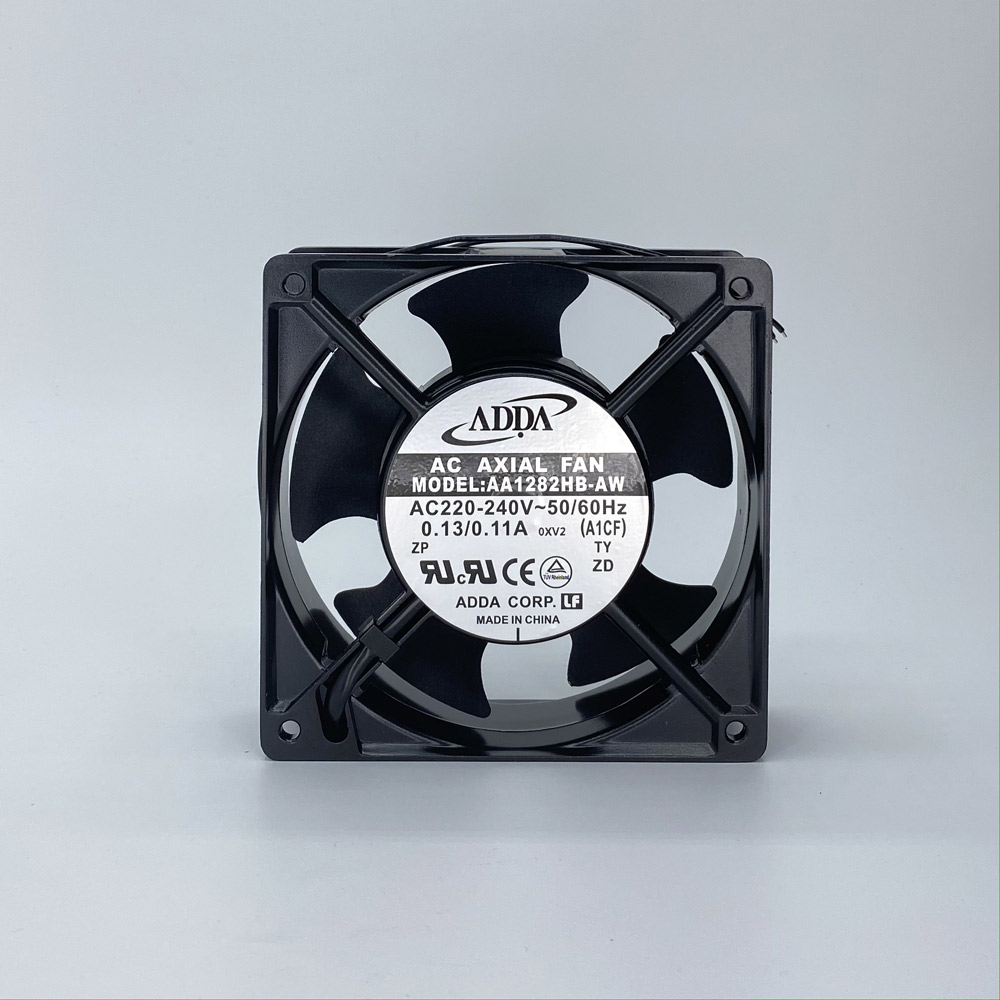

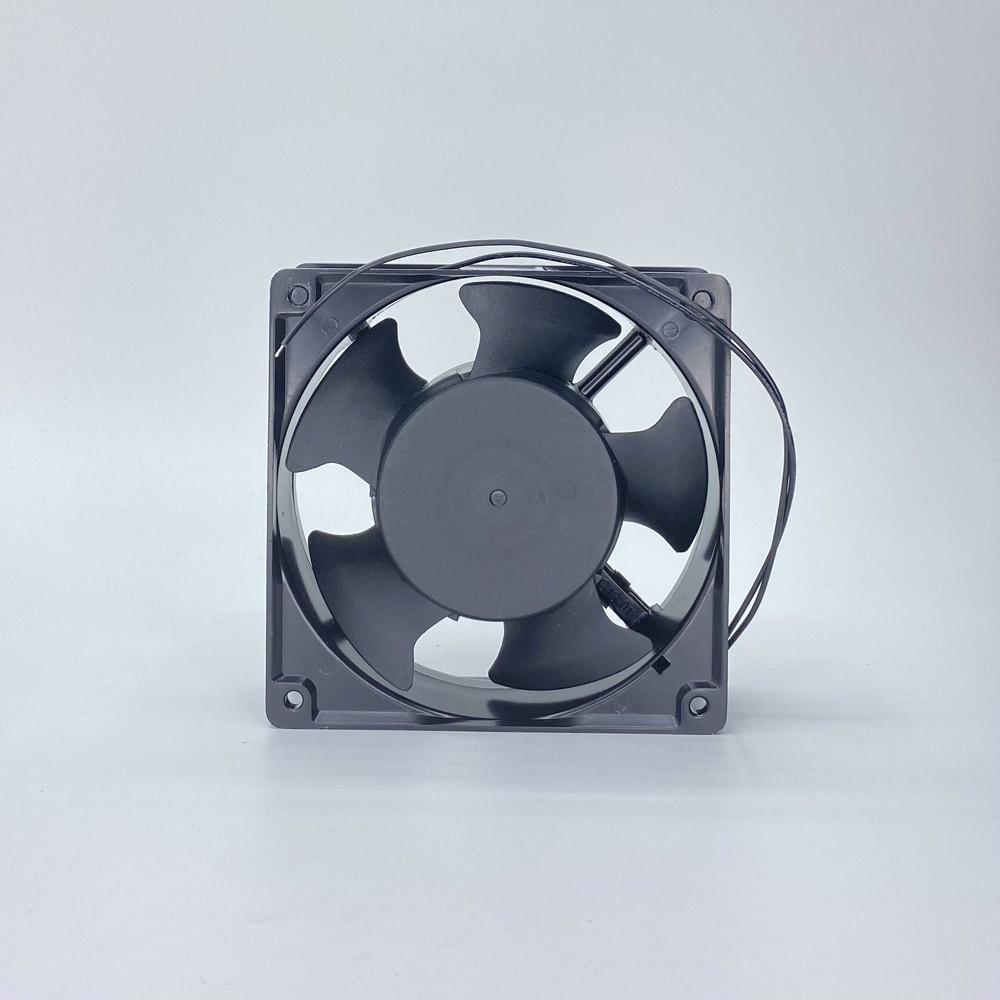

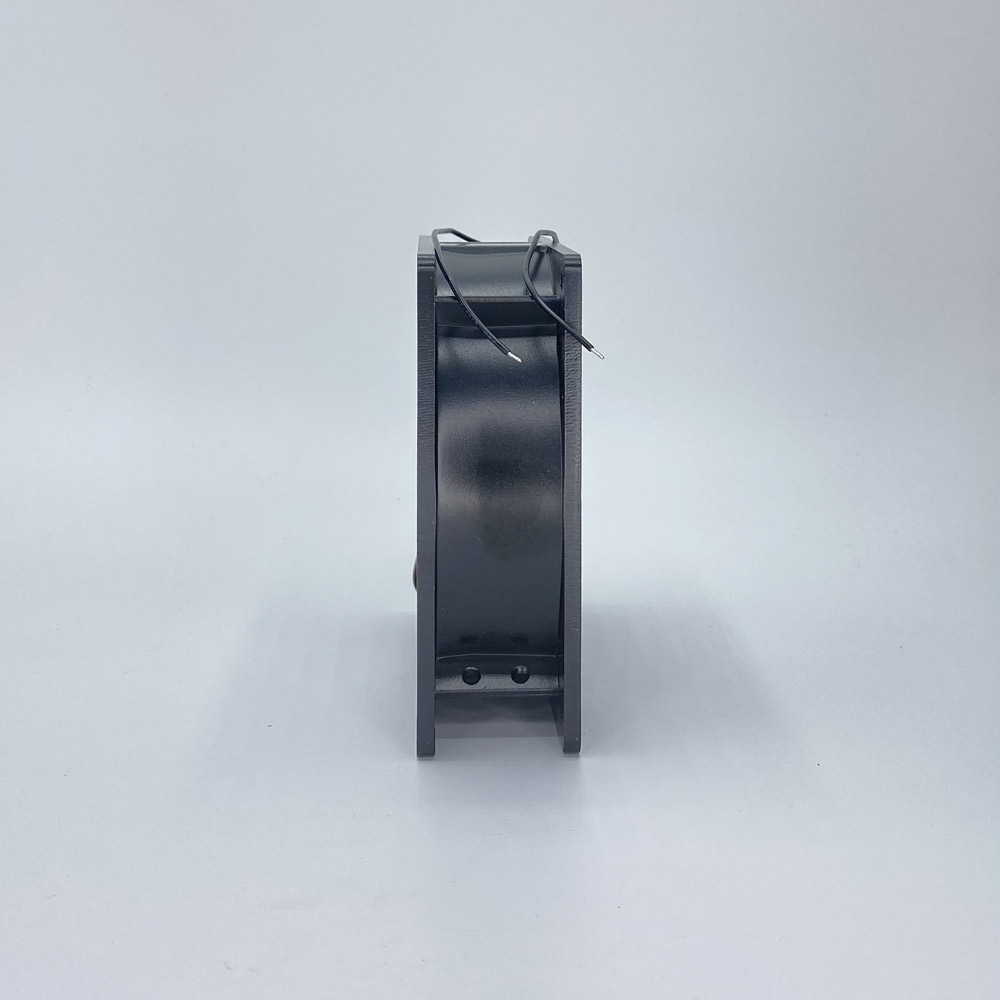

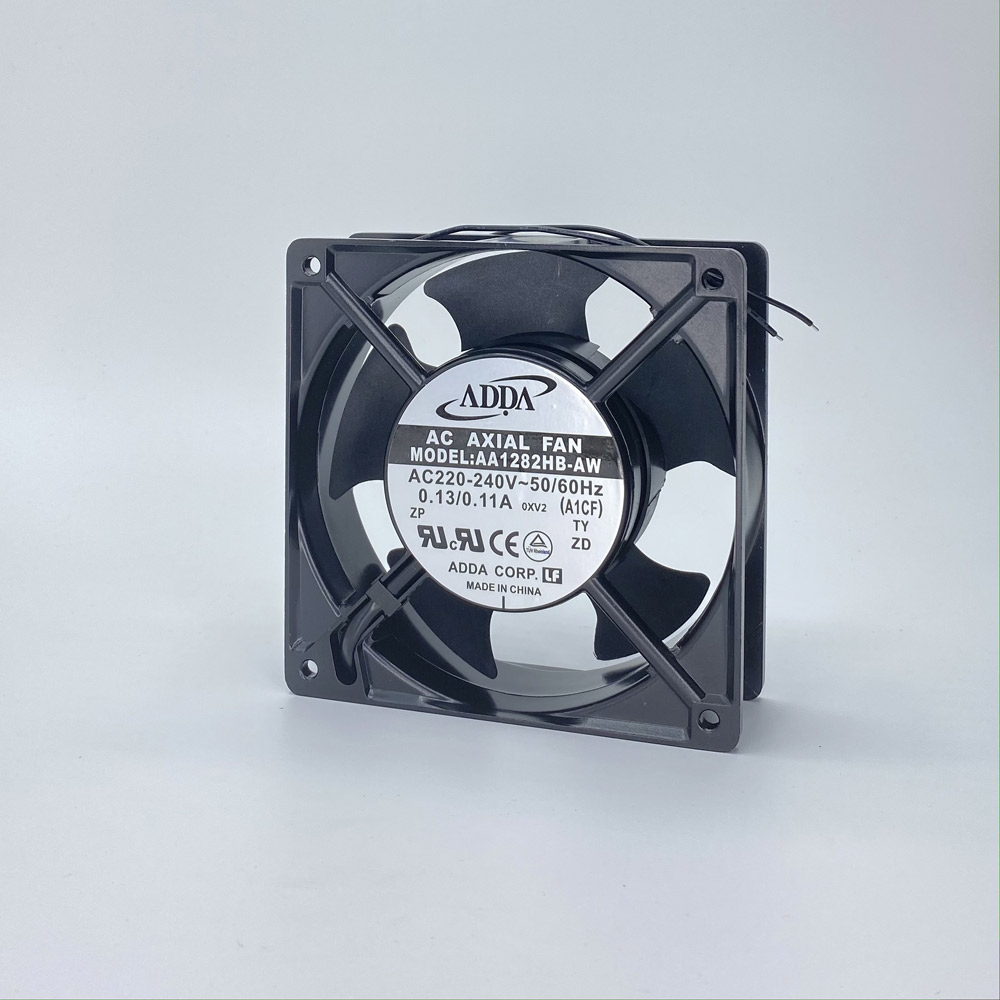

120X120X38 AC AXIAL FAN 230VAC, ADDA 2.93M3/MIN, 3100RPM A CUSCINETTO

12032abwad ventola assiale 230v 120x120x38 adda 3100rpm

120X120X38 AC AXIAL FAN 230VAC, ADDA 2.93M3/MIN, 3100RPM A CUSCINETTO

17.27 Iva esclusa

Out of stock

Size: 120x120x38
Voltage: 230VAC
Bearing System: ball
Terminal: Fili
Material: UL94 V-0
Life: 50.000h at 25°C
Working temperature: -40 ° C / + 70 ° C
Certification: UL – cUL – TUV – CE

ATTENZIONE: disponibile dal 13/10/21

Chiama per assistenza 039 6250932

17.27 Iva esclusa

Codice Produttore: AA1282HB-AW(A1CF)
Availability: Out of stock SKU: 12032ABWAD Categories: ,
Marca:

Description

ADDA is one of the main market leaders in the production of compact AC axial fans and shielded pole motors

Compact AC fans have always found great application for cooling in the electronics sector and are used for both cooling and suction in applications ranging from refrigerated display cases, to electrical panels or racks.

The compact design allows installation even in the most confined spaces such as in electrical panels or fireplaces (axial fans in metal resistant to high temperatures).
Accessories such as filters, grids or fasteners are also available.

ADDA fans are characterized by:
High quality construction
Reduced noise
Greater efficiency
Extended engine life
RoHS compliance

Size (mm)
120x120x38
Voltage (V)
230V AC
Bearing System
Ball
Terminals
Wire
Current (A)
0.13
Power (W)
20.8
Speed (rpm)
3100
Max air flow (m3/min)
2.93
Max air flow (CFM)
103.5
Max pressure (InH2O)
0.322
Max pressure (mmH2O)
9.070
Noise (db/A)
47
Weight (gr)
550
