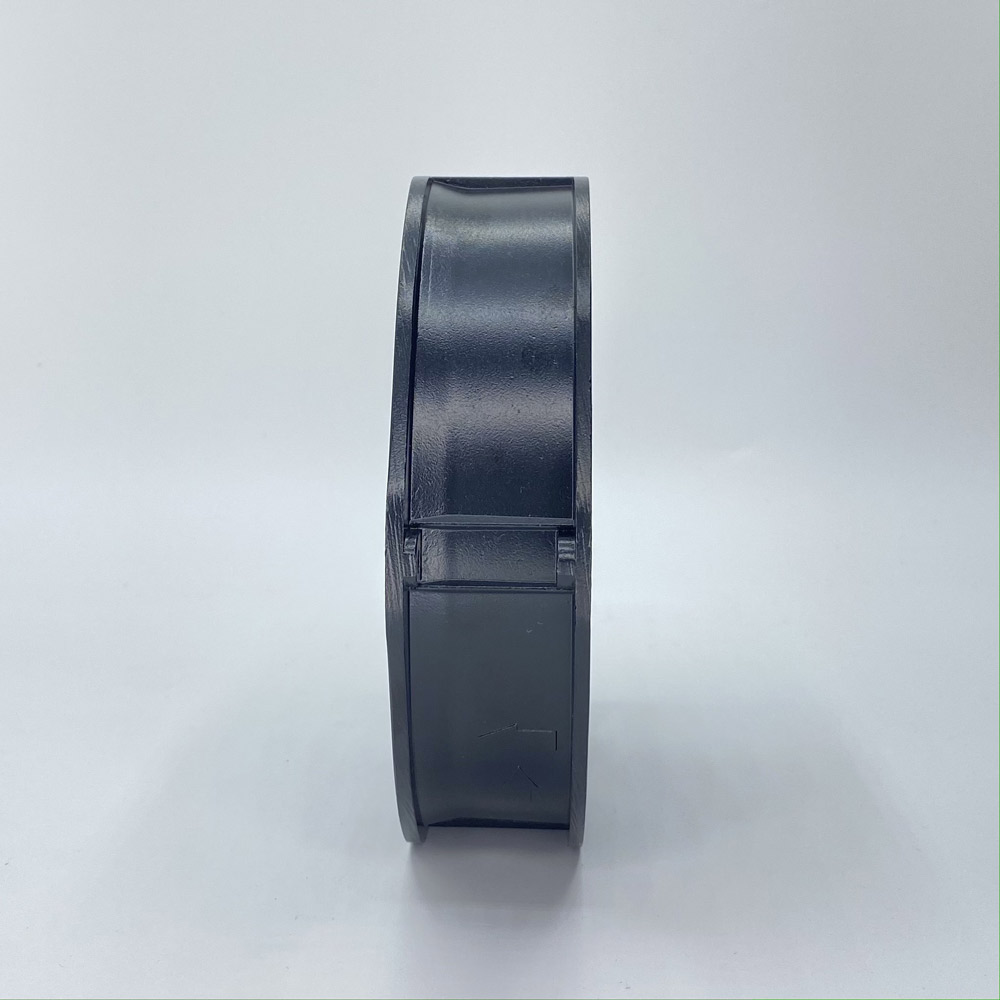

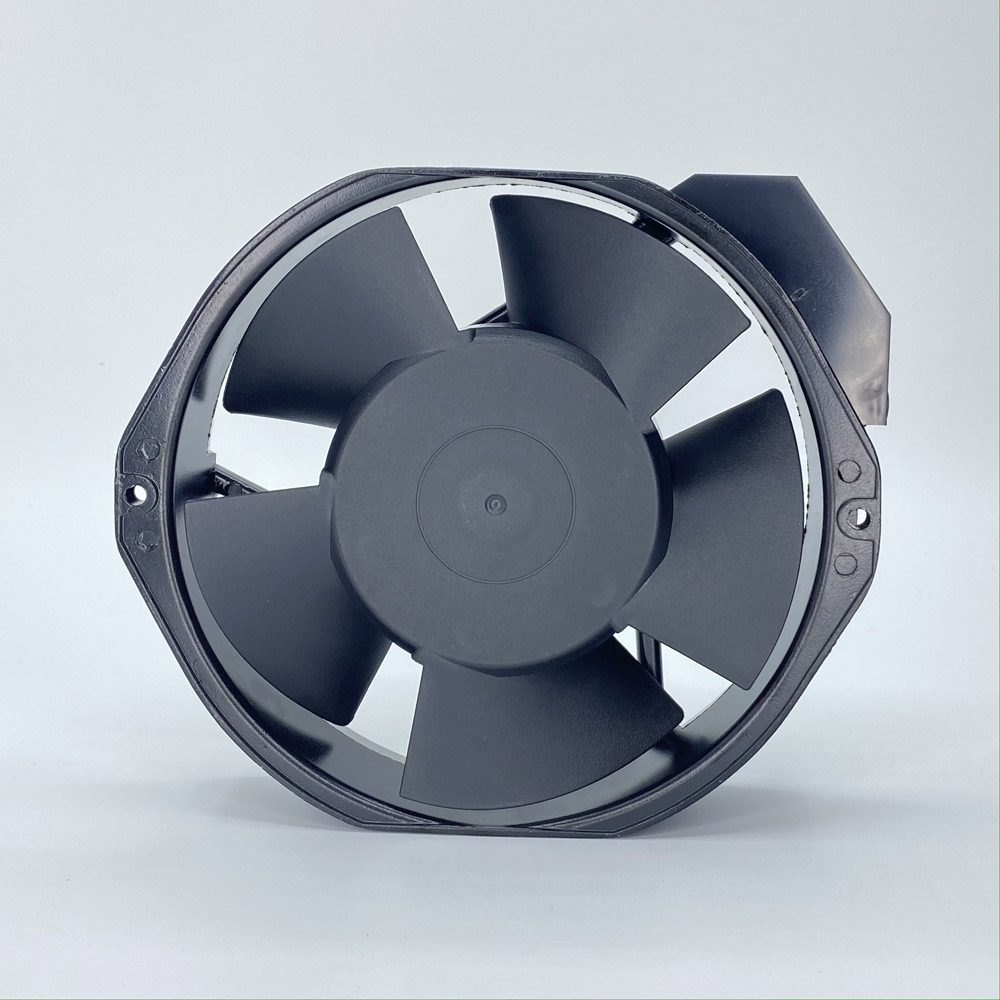

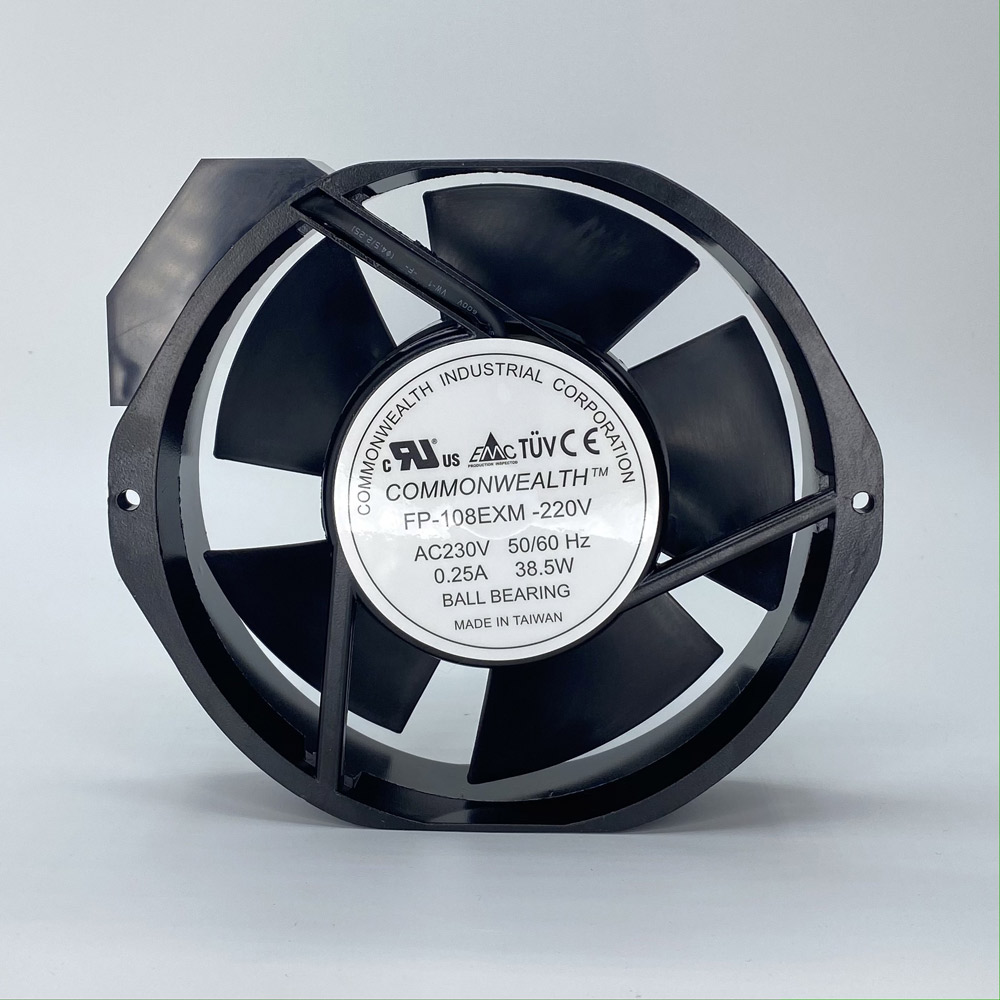

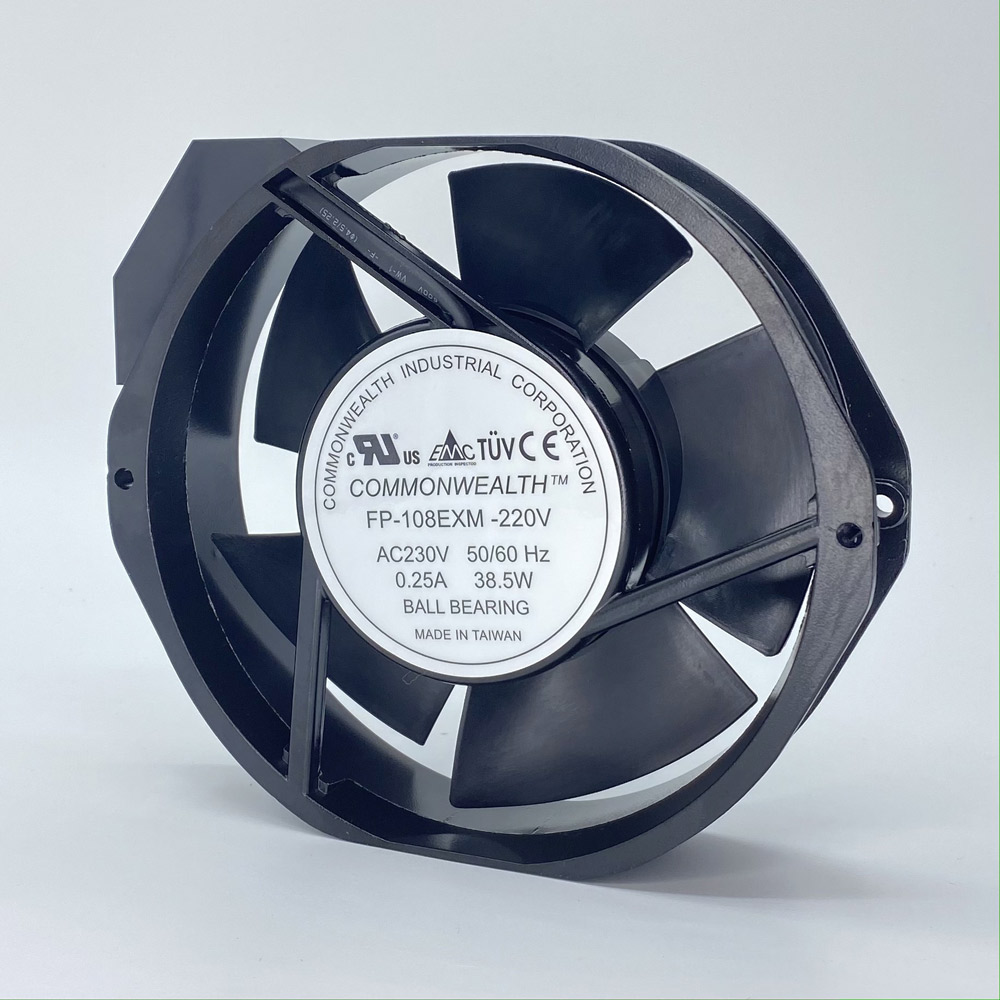

172X150X38 AC AXIAL FAN 230VAC, COMMONWEALTH 6.3M3/MIN, 2800RPM

17232ABT ventola assiale 230v 172x150x38 commonwealth 2800rpm

172X150X38 AC AXIAL FAN 230VAC, COMMONWEALTH 6.3M3/MIN, 2800RPM

40.72 Iva esclusa

Out of stock

Size: 172X150X38
Voltage: 230VAC
Bearing System: ball
Terminal: Faston
Material: UL94 V-0
Life: 40.000h at 25°C
Working temperature: -10 ° C / + 75 ° C
Certification: cUL – TUV – CE

Chiama per assistenza 039 6250932

40.72 Iva esclusa

Codice Produttore: FP-108EXM
Availability: Out of stock SKU: 17232ABT Categories: ,
Marca:

Description

Compact AC axial fans have always found great application for cooling in the electronics sector and are used for both cooling and suction in applications ranging from refrigerated display cases, to electrical panels or racks.

The compact design allows installation even in the most confined spaces such as in electrical panels or fireplaces (axial fans in metal resistant to high temperatures).
Accessories such as filters, grids or fasteners are also available
RoHS compliance

Size (mm)
172x150x38
Voltage (V)
230V AC
Bearing System
Ball
Terminals
Faston
Current (A)
0.28
Power (W)
39
Speed (rpm)
2800
Max air flow (m3/min)
6.3
Max air flow (CFM)
220
Max pressure (InH2O)
0.7
Max pressure (mmH2O)
17.77
Noise (db/A)
48
Weight (gr)
760
