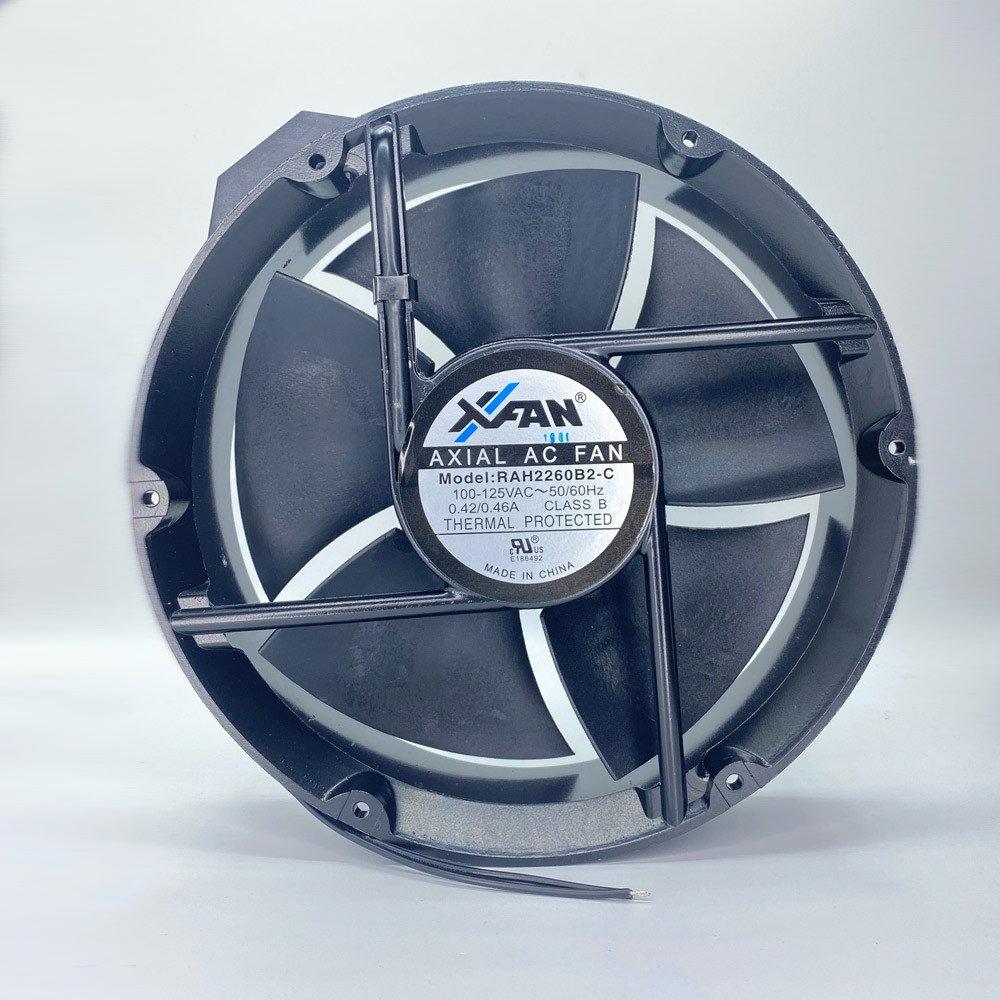

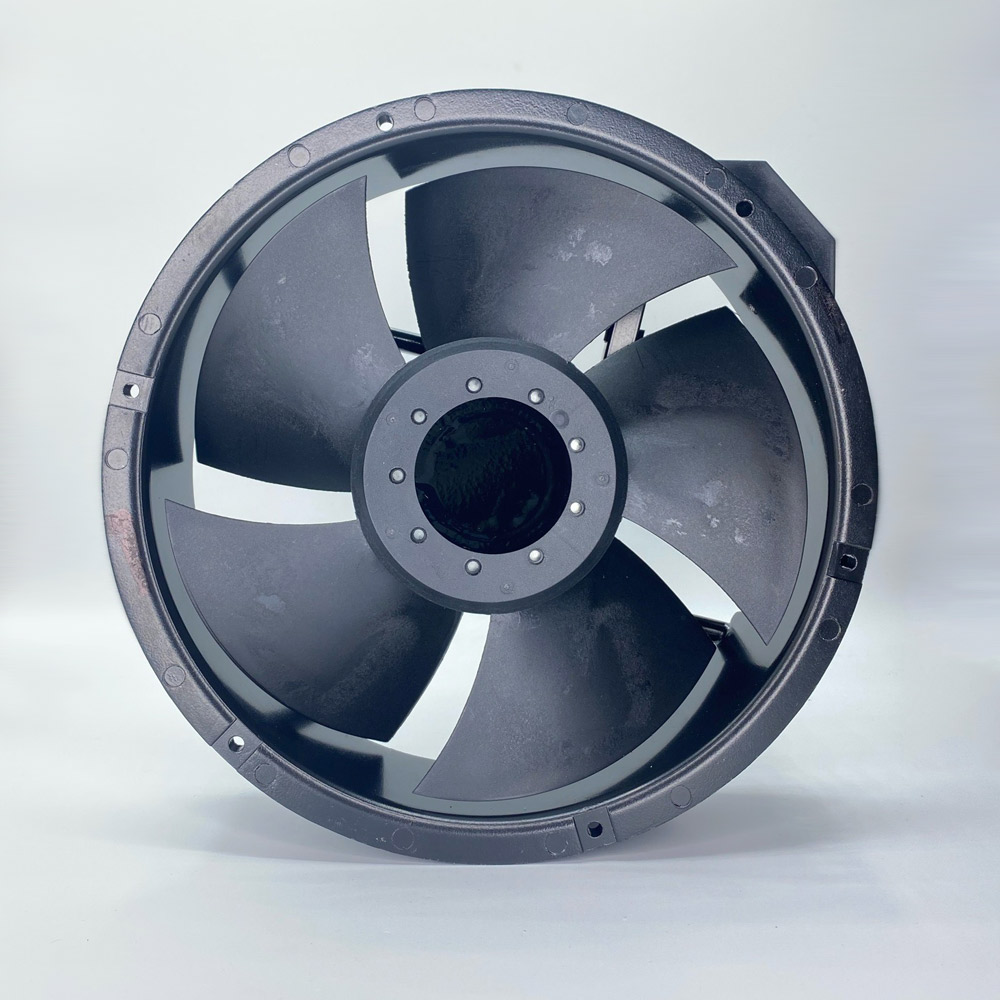

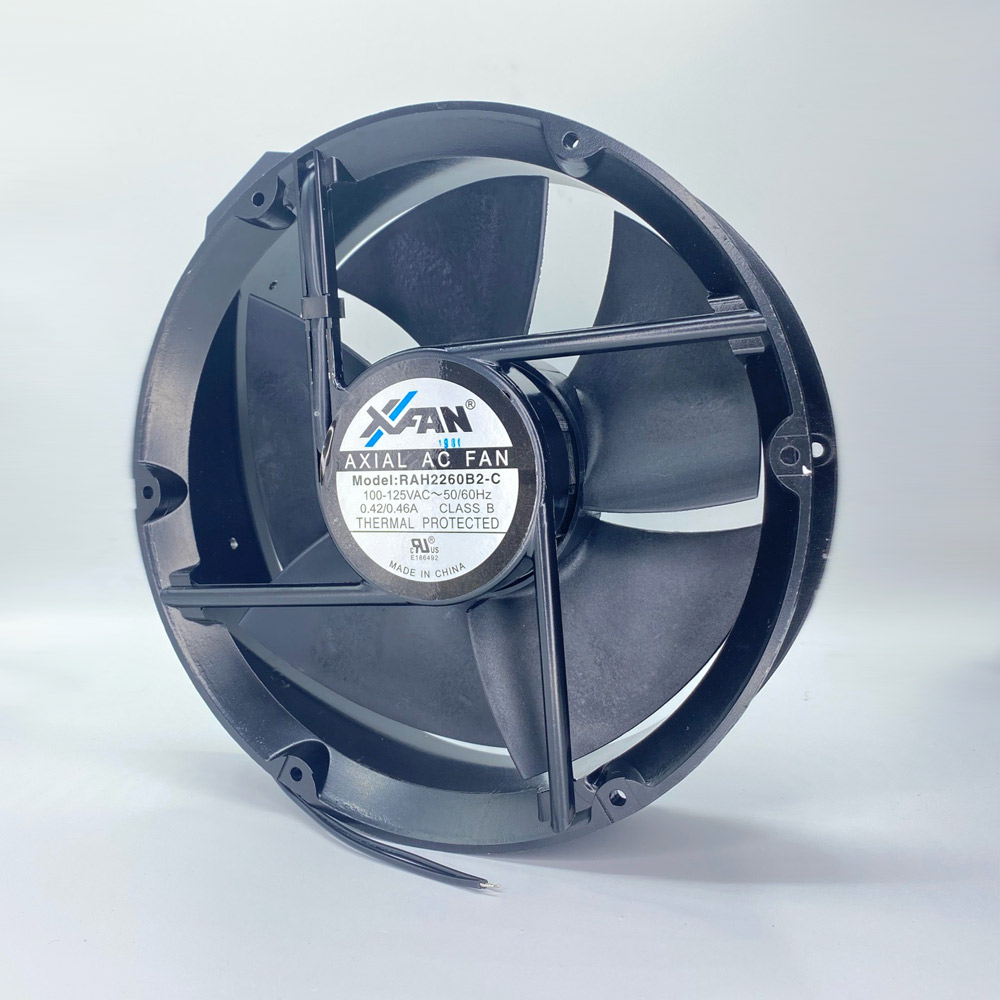

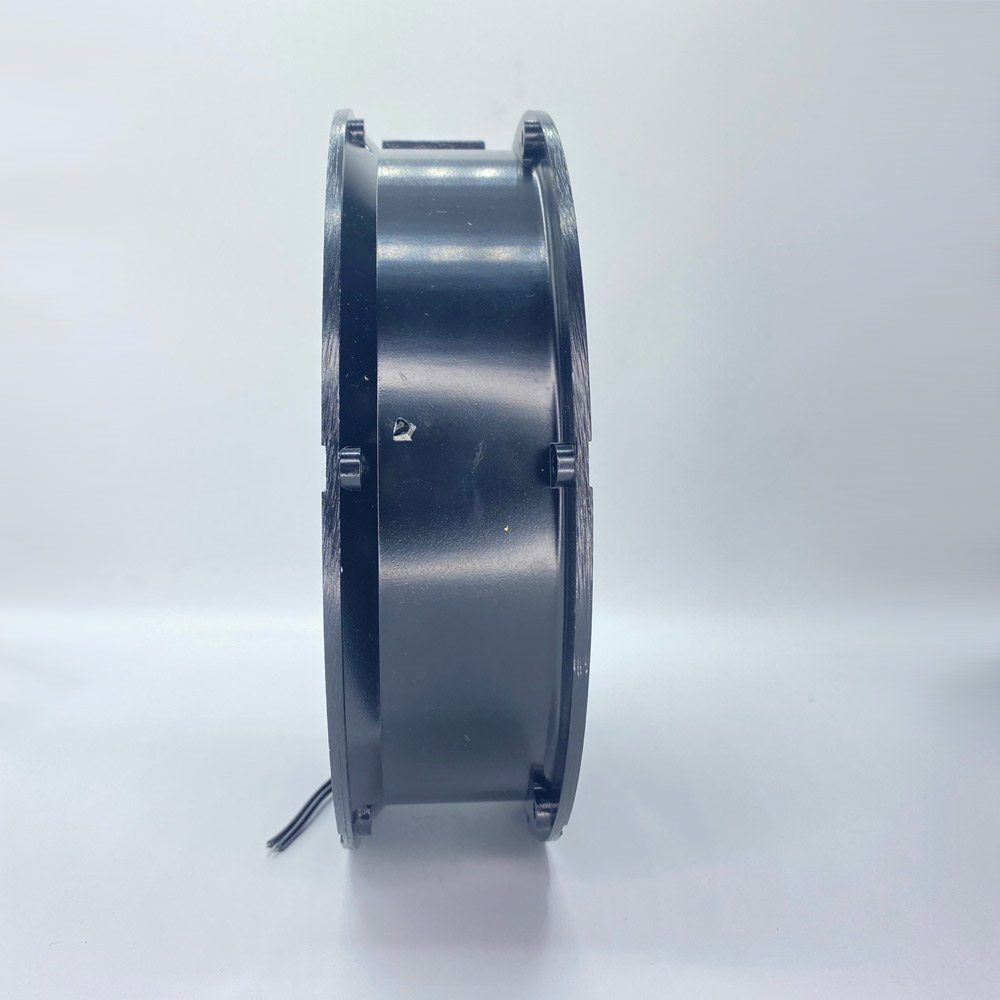

220X60 AC AXIAL FAN 115VAC, XFAN 12.97M3/MIN, 3200RPM

€62.48 Iva esclusa

In stock

Size: 220X60
Voltage: 115VAC
Bearing System: ball
Terminal: Fili
Material: UL94 V-0
Life: 50.000h at 25°C
Working temperature: -10 ° C / + 65 ° C
Certification: UL

Chiama per assistenza 039 6250932

€62.48 Iva esclusa

Codice Produttore: RAH2260B2-C
Availability: 26 in stock SKU: 22061ABWXR Categories: ,
Marca:

Description

XFAN is one of the main market leaders in the production of compact AC axial fans and shielded pole motors

Compact AC fans have always found great application for cooling in the electronics sector and are used for both cooling and suction in applications ranging from refrigerated display cases, to electrical panels or racks.

The compact design allows installation even in the most confined spaces such as in electrical panels or fireplaces (axial fans in metal resistant to high temperatures).
Accessories such as filters, grids or fasteners are also available.

FANLAB fans are characterized by:
High quality construction
Reduced noise
Greater efficiency
Extended engine life
RoHS compliance

Size (mm)
220x60
Voltage (V)
115V AC
Bearing System
Ball
Terminals
Wire
Current (A)
0.46
Power (W)
56
Speed (rpm)
3200
Max air flow (m3/min)
12.97
Max air flow (CFM)
458
Max pressure (InH2O)
0.98
Max pressure (mmH2O)
24.9
Noise (db/A)
66
Weight (gr)
1540
