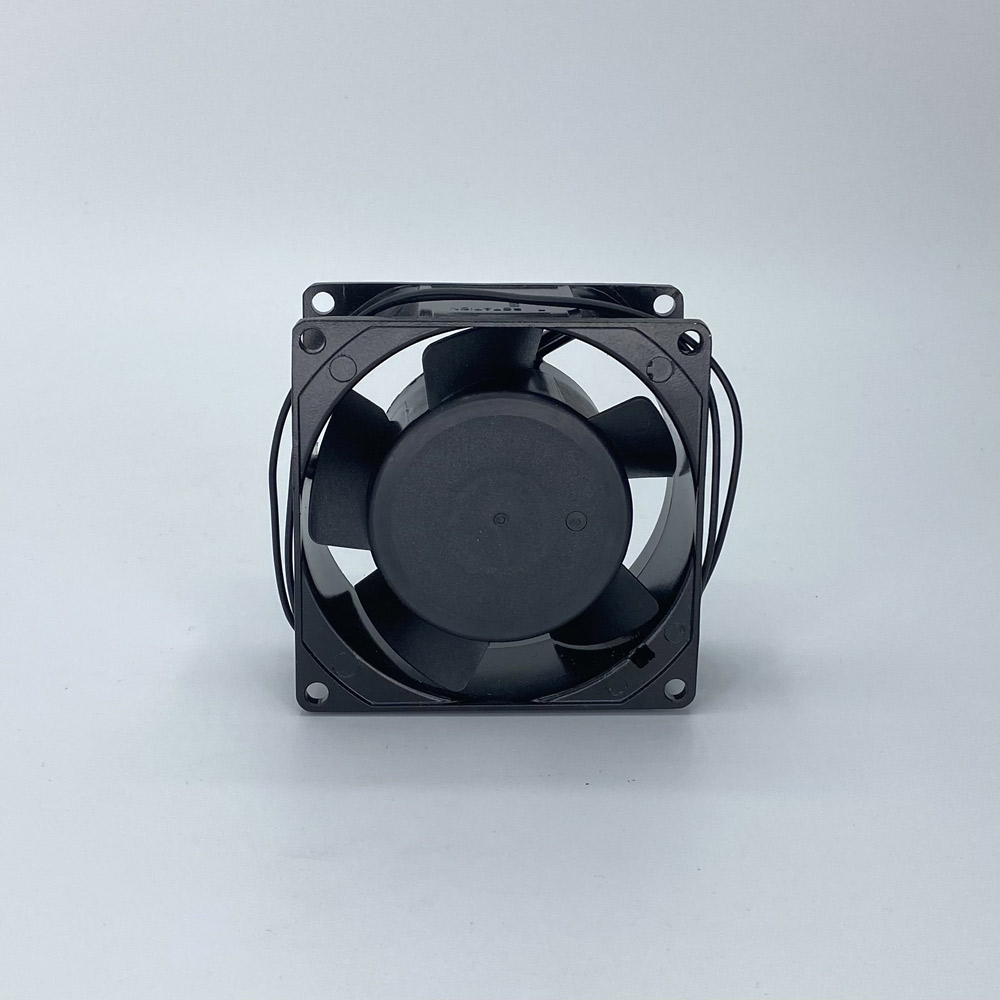

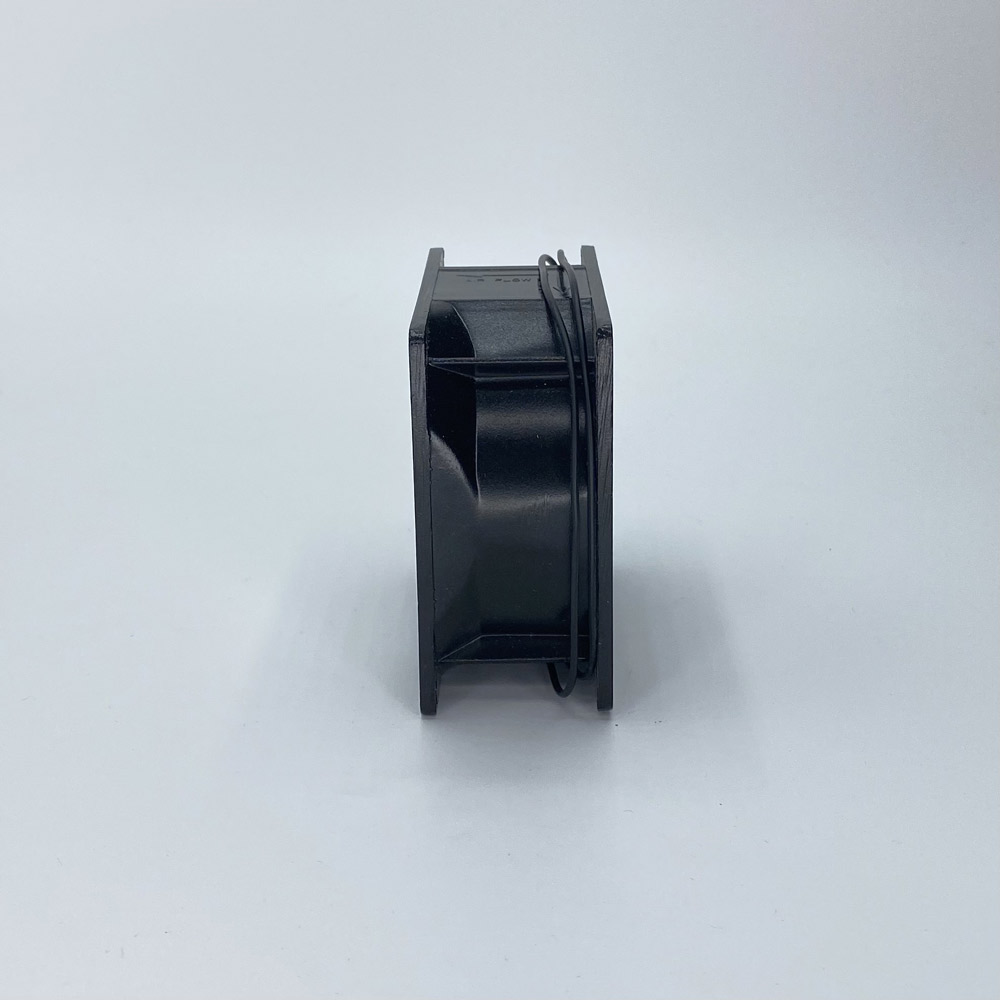

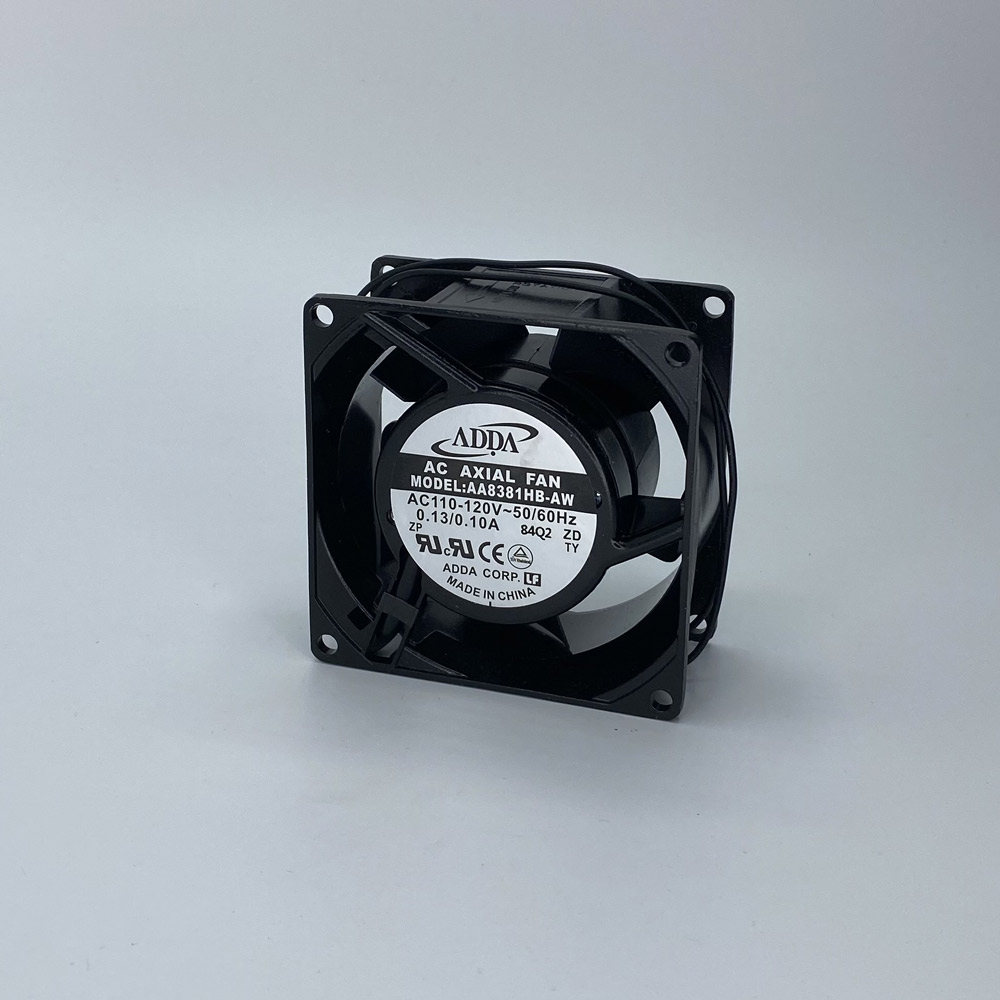

80X80X38 AC AXIAL FAN 115VAC, ADDA 0.84M3/MIN, 2800RPM

80381abwad ventola assiale 230v 80x80x38 commonwealth 2800rpm

80X80X38 AC AXIAL FAN 115VAC, ADDA 0.84M3/MIN, 2800RPM

16.57 VAT excluded

In stock

Size: 80x80x38
Voltage: 115VAC
Bearing System: ball
Terminal: Fili
Material: UL94 V-0
Life: 50.000h at 40°C
Working temperature: -10 ° C / + 70 ° C
Certification: UL – cUL – TUV – CE

Chiama per assistenza 039 6250932

Data prevista per la spedizione: 12-09-2024

16.57 VAT excluded

Quantità disponibile: 16

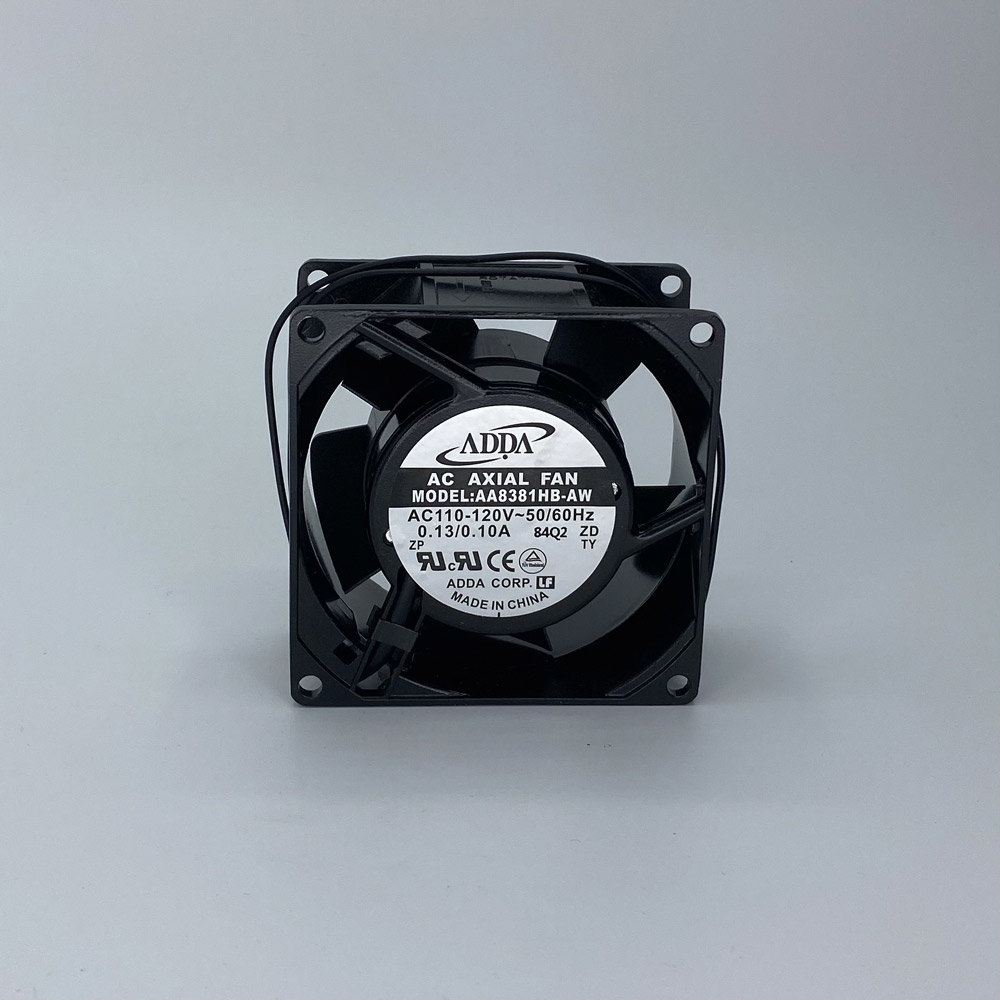

Codice Produttore: AA8381HB-AW
Availability: 16 in stock SKU: 80381ABWAD Categories: ,
Marca:
Unità
Scontistica per unità
1-4
€ 12.78
5-14
€ 12.14
15-20
€ 11.53
+20
Richiedi prezzo speciale

Description

ADDA is one of the main market leaders in the production of compact AC axial fans and shielded pole motors

Compact AC fans have always found great application for cooling in the electronics sector and are used for both cooling and suction in applications ranging from refrigerated display cases, to electrical panels or racks.

The compact design allows installation even in the most confined spaces such as in electrical panels or fireplaces (axial fans in metal resistant to high temperatures).
Accessories such as filters, grids or fasteners are also available.

ADDA fans are characterized by:
High quality construction
Reduced noise
Greater efficiency
Extended engine life
RoHS compliance

Size (mm)
80x80x38
Voltage (V)
115V AC
Bearing System
Ball
Terminals
Wire
Current (A)
0.14
Power (W)
10.9
Speed (rpm)
2800
Max air flow (m3/min)
0.84
Max air flow (CFM)
29.6
Max pressure (InH2O)
0.166
Max pressure (mmH2O)
4.216
Noise (db/A)
31.6
Weight (gr)
320
