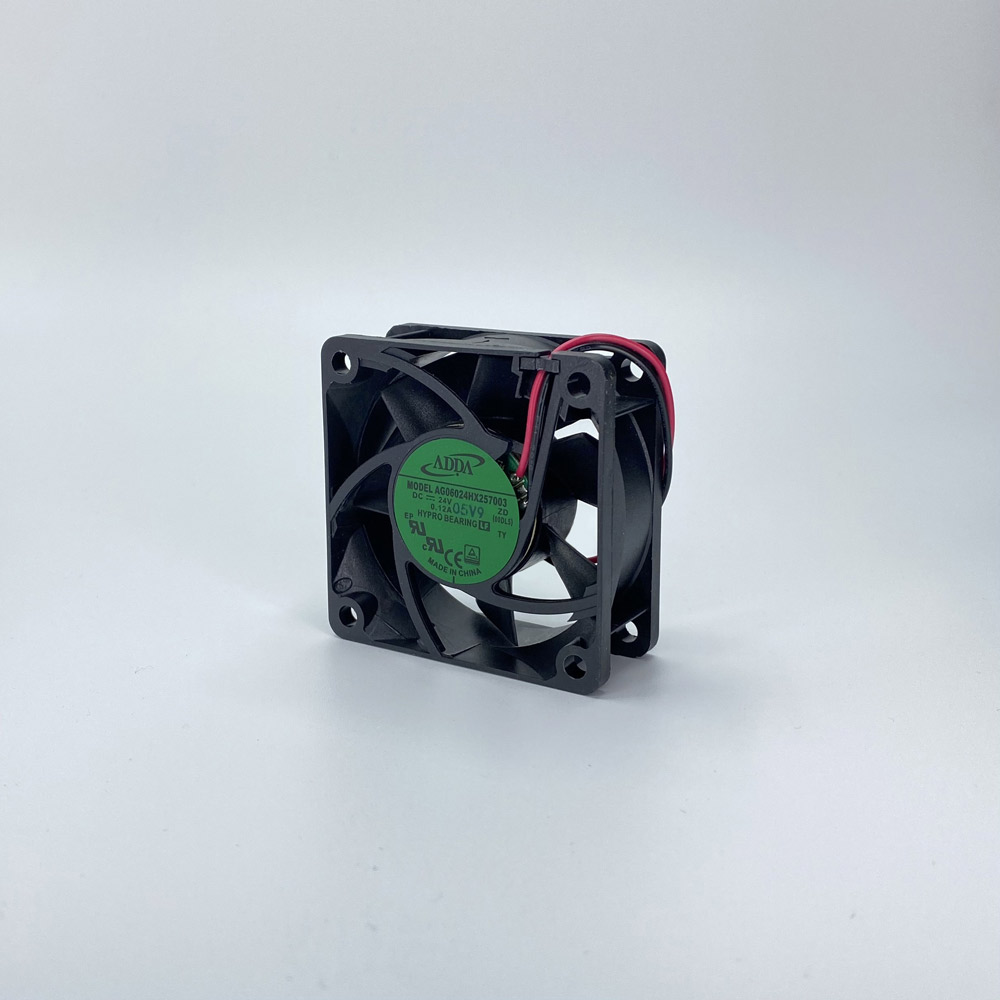

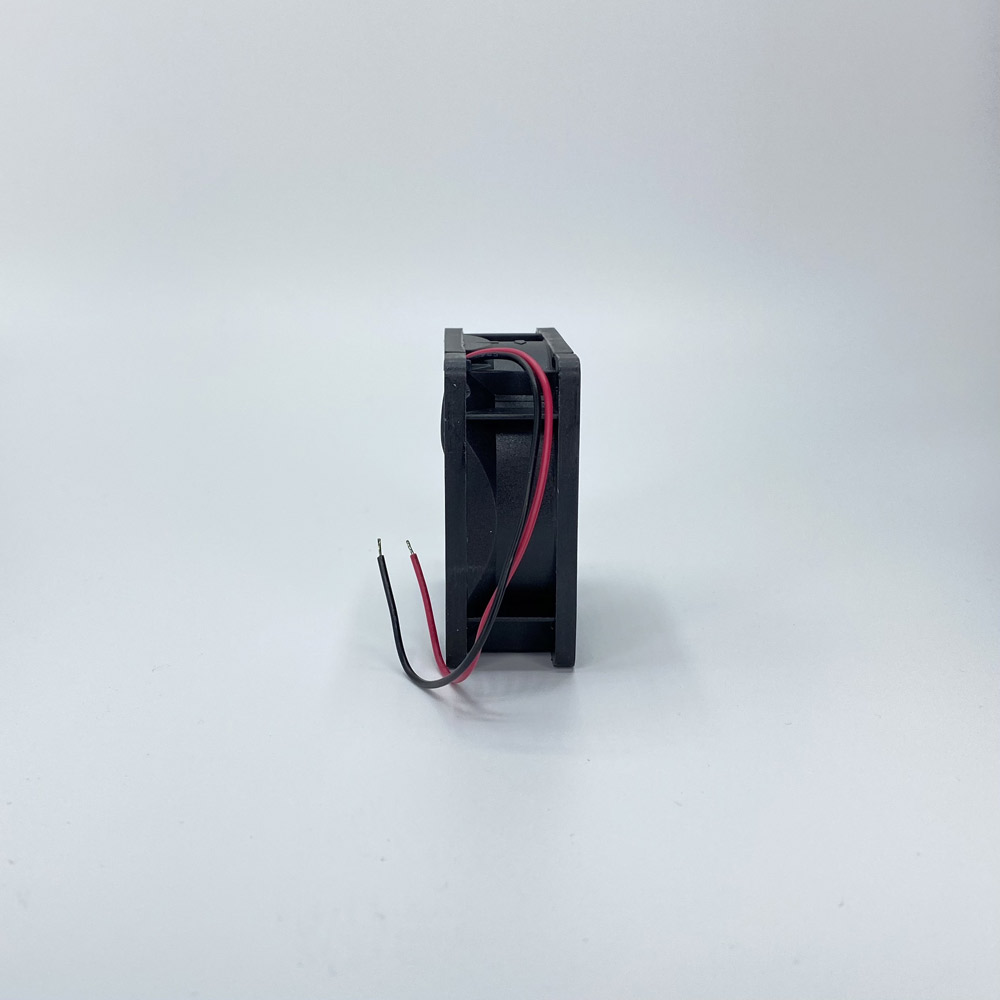

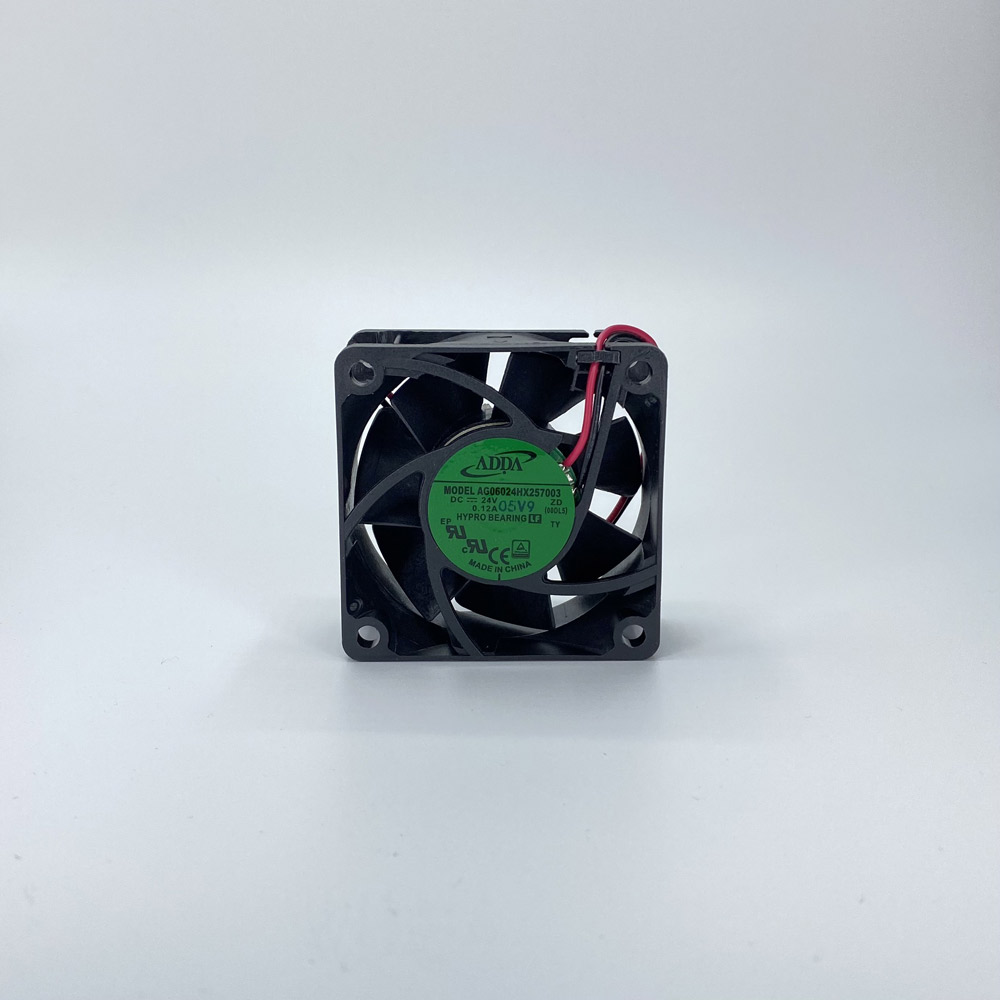

60x60x25 DC AXIAL FAN, 24VDC, ADDA 0.66m3/min, 4500rpm-c1

60x60x25 DC AXIAL FAN, 24VDC, ADDA 0.66m3/min, 4500rpm-c1

5.17 Iva esclusa

Out of stock

Size: 60x60x25
Voltage: 24VDC
Bearing System: Bronzina/sleeve
Terminal: Wire
Material: UL94 V-0
Life: 30.000h at 25°C
Working temperature: -10°C / +75°C
Certification: UL – cUL – TUV – CE

Chiama per assistenza 039 6250932

5.17 Iva esclusa

Codice Produttore: AG06024HX257003(00DL5)
Availability: Out of stock SKU: 60252CSWADC1 Categories: ,
Marca:
Unità
Scontistica per unità
1-4
€ 3.65
5-14
€ 3.47
15-20
€ 3.29
+20
Ask for special price

Description

ADDA is one of the main market leaders in the production of compact DC axial fans.

Compact DC fans have always found great application for cooling in the electronics sector and are used for both cooling and suction in applications ranging from refrigerated display cases, to electrical panels or racks.

The compact design allows installation even in the most confined spaces such as in electrical panels or fireplaces (axial fans in metal resistant to high temperatures).
Accessories such as filters, grids or fasteners are also available.

ADDA fans are characterized by:
• High quality construction
• Reduced noise
• Greater efficiency
• Extended engine life
• RoHS compliance

Size (mm)
60x60x25
Voltage (V)
24V DC
Bearing System
Sleeve
Terminals
Wire
Current (A)
0.12
Power (W)
2.88
Speed (rpm)
4500
Max air flow (m3/min)
0.66
Max air flow (CFM)
23.37
Max pressure (InH2O)
0.25
Max pressure (mmH2O)
6.4
Noise (db/A)
33
Weight (gr)
62
