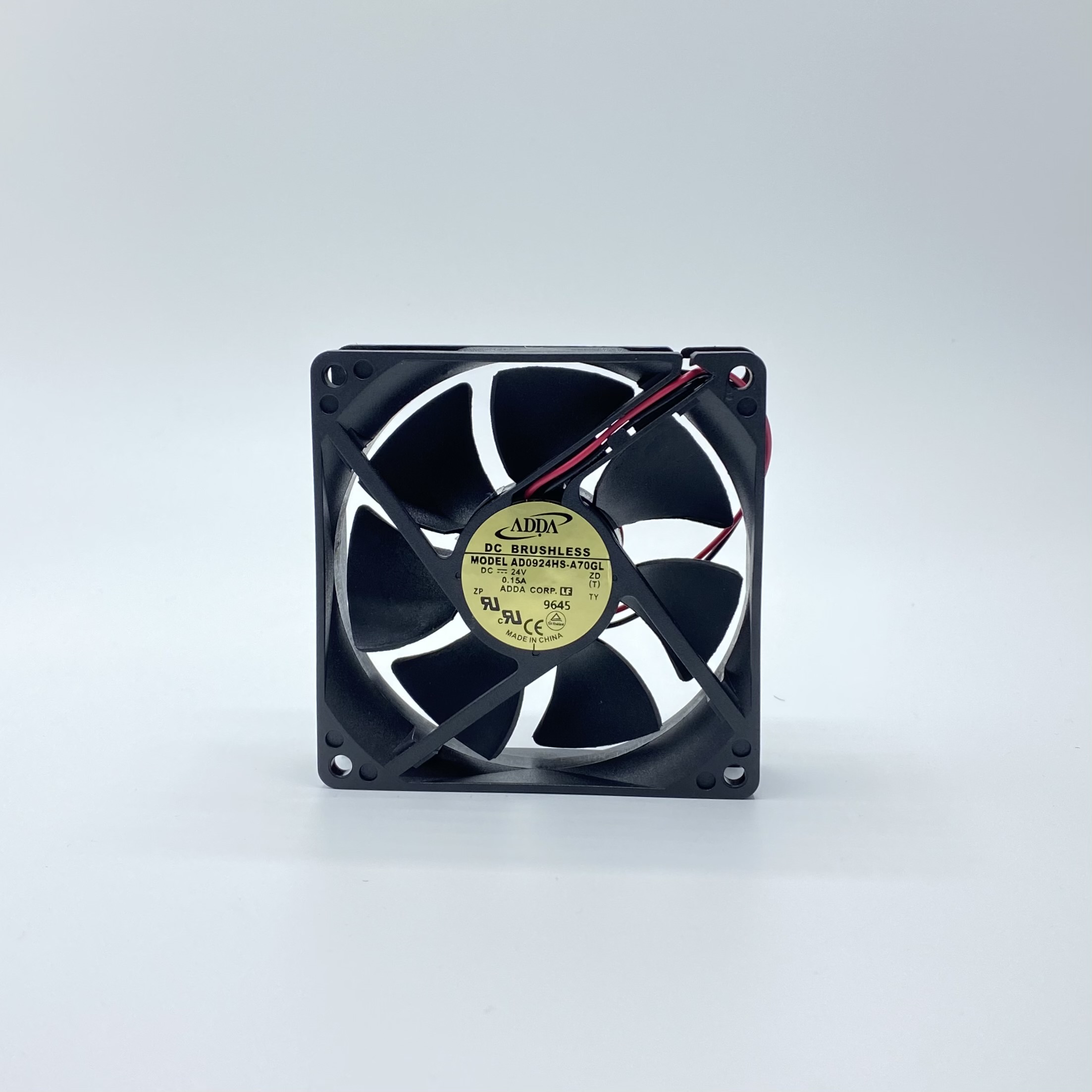

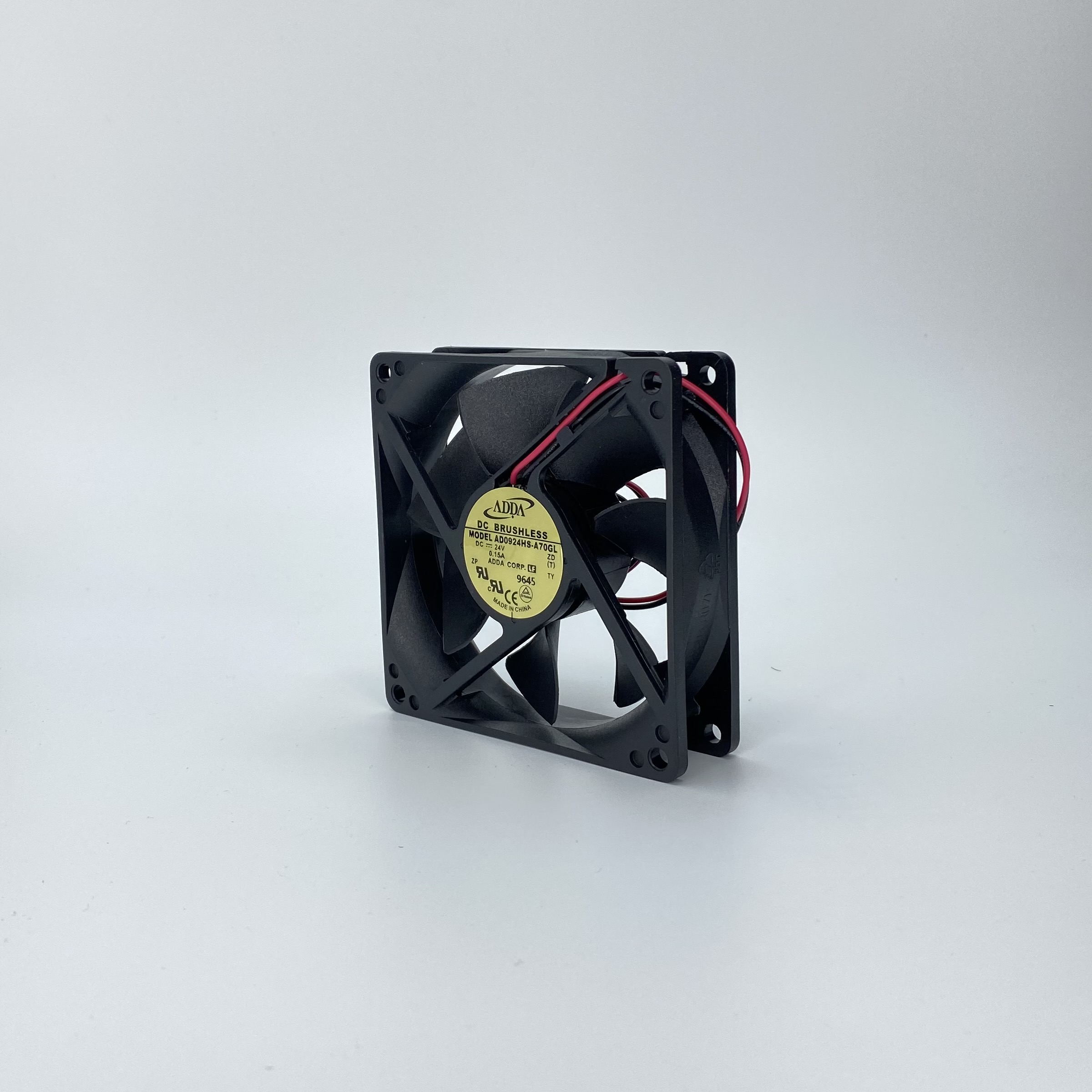

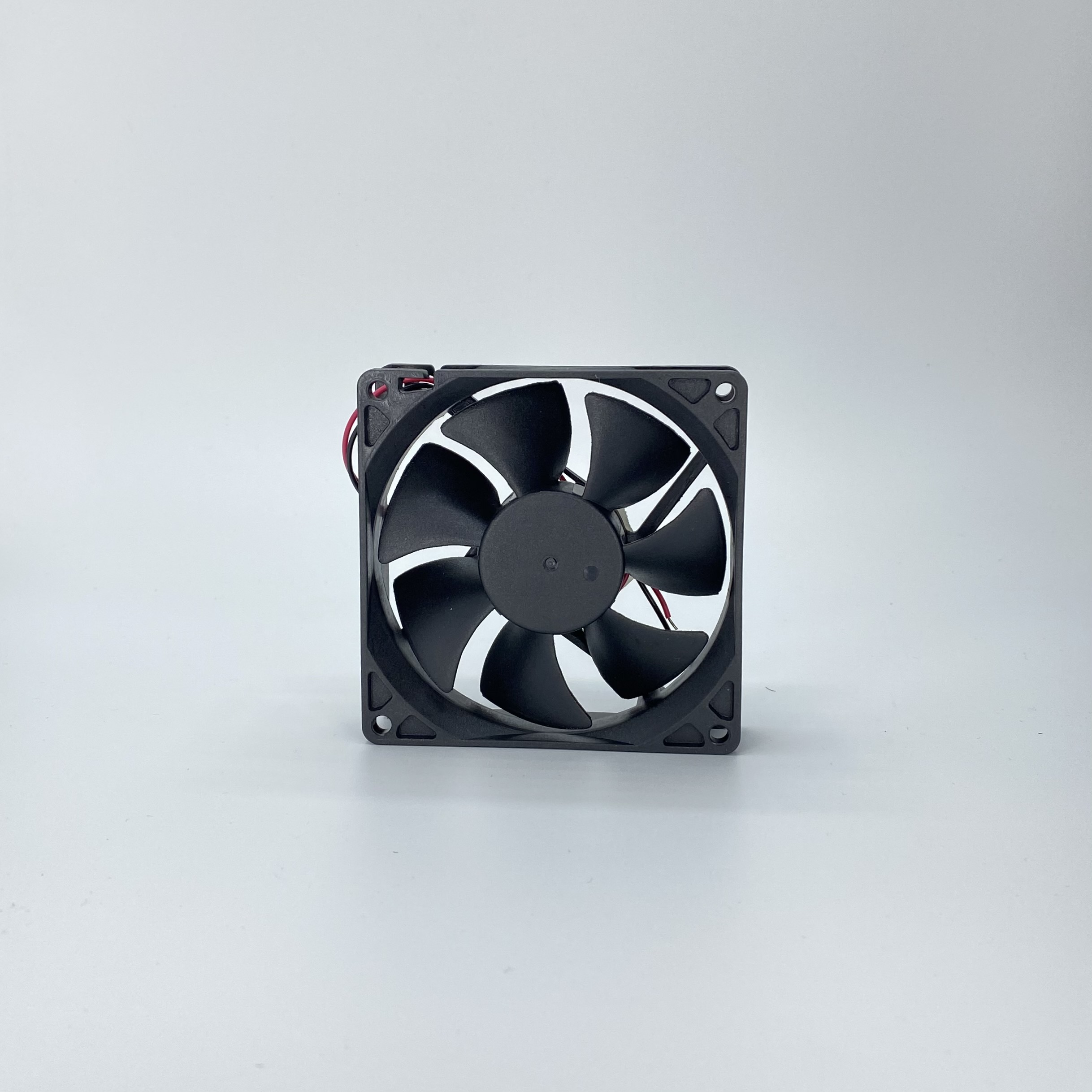

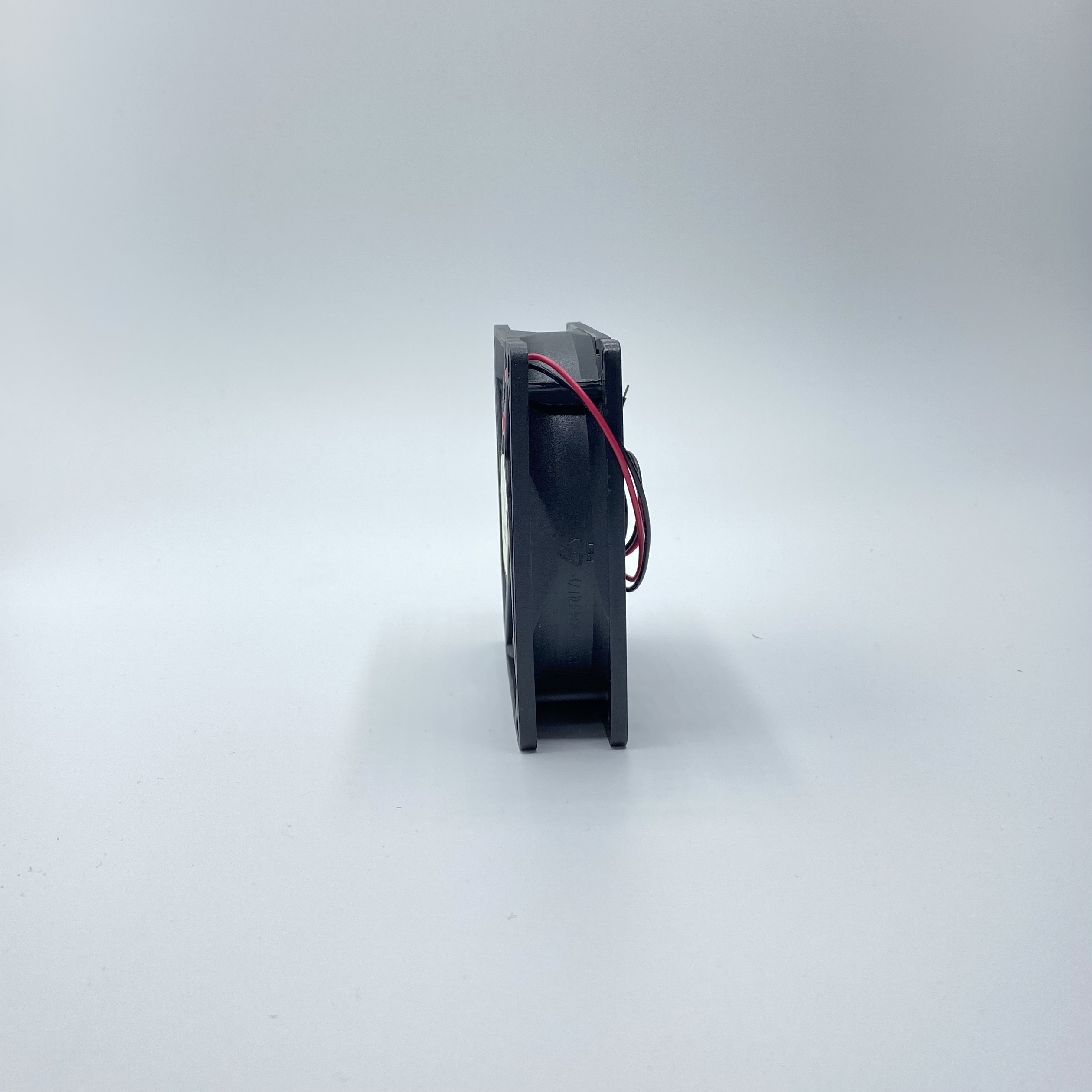

92x92x25 DC AXIAL FAN, 24VDC, ADDA 1.59m3/min, 2900rpm

92252CSWAD-ventola-assiale-adda-92x92x25-24v-2900rpm-F

92x92x25 DC AXIAL FAN, 24VDC, ADDA 1.59m3/min, 2900rpm

5.52 VAT excluded

In stock

Size: 92x92x25
Voltage: 24VDC
Bearing System: cuscinetto/ball
Terminal: Wire
Material: UL94 V-0
Life: 70.000h at 25°C
Working temperature: -10°C / +75°C
Certification: UL – cUL – TUV – CE

Chiama per assistenza 039 6250932

Data prevista per la spedizione: 10-10-2024

5.52 VAT excluded

Quantità disponibile: 172

Codice Produttore: AD0924HS-A70GL (T)
Availability: 172 in stock SKU: 92252CSWAD Categories: ,
Marca:
Unità
Scontistica per unità
1-4
€ 4.09
5-14
€ 3.89
15-17
€ 3.70
+17
Ask for special price

Description

ADDA is one of the main market leaders in the production of compact DC axial fans.

Compact DC fans have always found great application for cooling in the electronics sector and are used for both cooling and suction in applications ranging from refrigerated display cases, to electrical panels or racks.

The compact design allows installation even in the most confined spaces such as in electrical panels or fireplaces (axial fans in metal resistant to high temperatures).
Accessories such as filters, grids or fasteners are also available.

ADDA fans are characterized by:
• High quality construction
• Reduced noise
• Greater efficiency
• Extended engine life
• RoHS compliance

Size (mm)
92x92x25
Voltage (V)
24V DC
Bearing System
Sleeve
Terminals
Wire
Current (A)
0.15
Power (W)
3.6
Speed (rpm)
2900
Max air flow (m3/min)
1.59
Max air flow (CFM)
56.07
Max pressure (InH2O)
0.15
Max pressure (mmH2O)
3.72
Noise (db/A)
37.5
Weight (gr)
92
