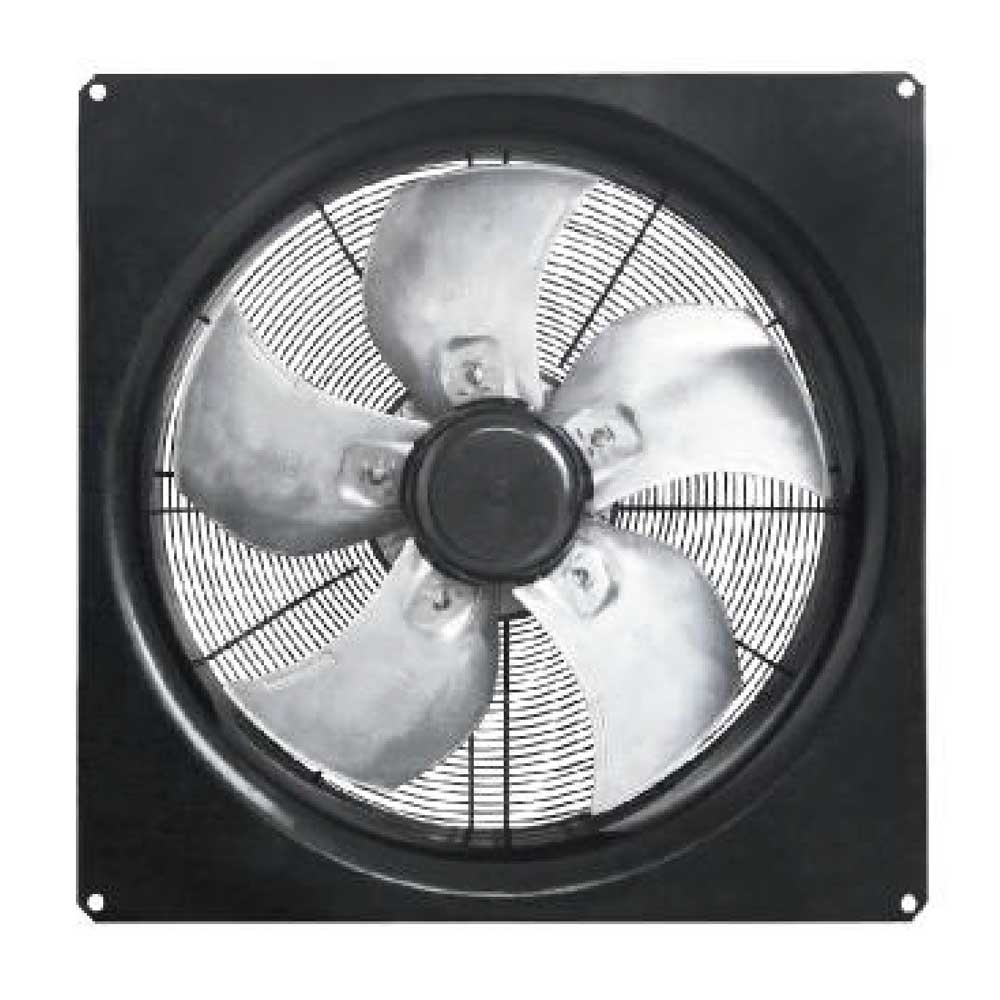

DIAM. 800, 400VAC, EXTERNAL ROTOR AXIAL FAN 425 M3/MIN

VENTILATORE ASSIALE ELETTRONICO A ROTORE ESTERNO, DIAM. 350, 230VAC, 60 M3/MIN
VENTILATORE ASSIALE A ROTORE ESTERNO, DIAM. 200, 230VAC, 14.17 M3/MIN

DIAM. 800, 400VAC, EXTERNAL ROTOR AXIAL FAN 425 M3/MIN

Original price was: €1,894.63.Current price is: €1,705.17. VAT excluded

In stock

Duty cycle: N.D.
Insulation class: F
Working temperature: -40 ° C/ + 60 ° C
Bearing system: ball
Life: 30.000h
Certification: CE

Chiama per assistenza 039 6250932

Data prevista per la spedizione: 24-10-2024

Original price was: €1,894.63.Current price is: €1,705.17. VAT excluded

Quantità disponibile: 2

Codice Produttore: FL-EC800V-400-110A1-01-B
Availability: 2 in stock SKU: FL-EC800V-400-110A1-01-B Categories: ,
Marca:
Unità
Scontistica per unità
1-4
€ 1894.63
5-10
€ 1799,90
+10
richiedi prezzo speciale

Description

Single-phase and three-phase external rotor axial fans are mainly used in industrial ventilation and commercial refrigeration.
The fan blades, in thermoplastic material or steel, have been designed to obtain a compact high efficiency fan.

Features
Power supply 400V – 50 / 60Hz
Working temperature between -40 ° C and + 60 ° C
Insulation class F
Fan blade diameter: 800 mm

p/n fanlab FL-EC800V-400-110A1-01-B

diametro
Ø 800
Voltage (V)
400V AC
Frequency
50/60 Hz
corrente-a
4.1
input-w
2100
velocita-rpm
1020
rumore-db-a
≤83
Air flow direction
sucking
