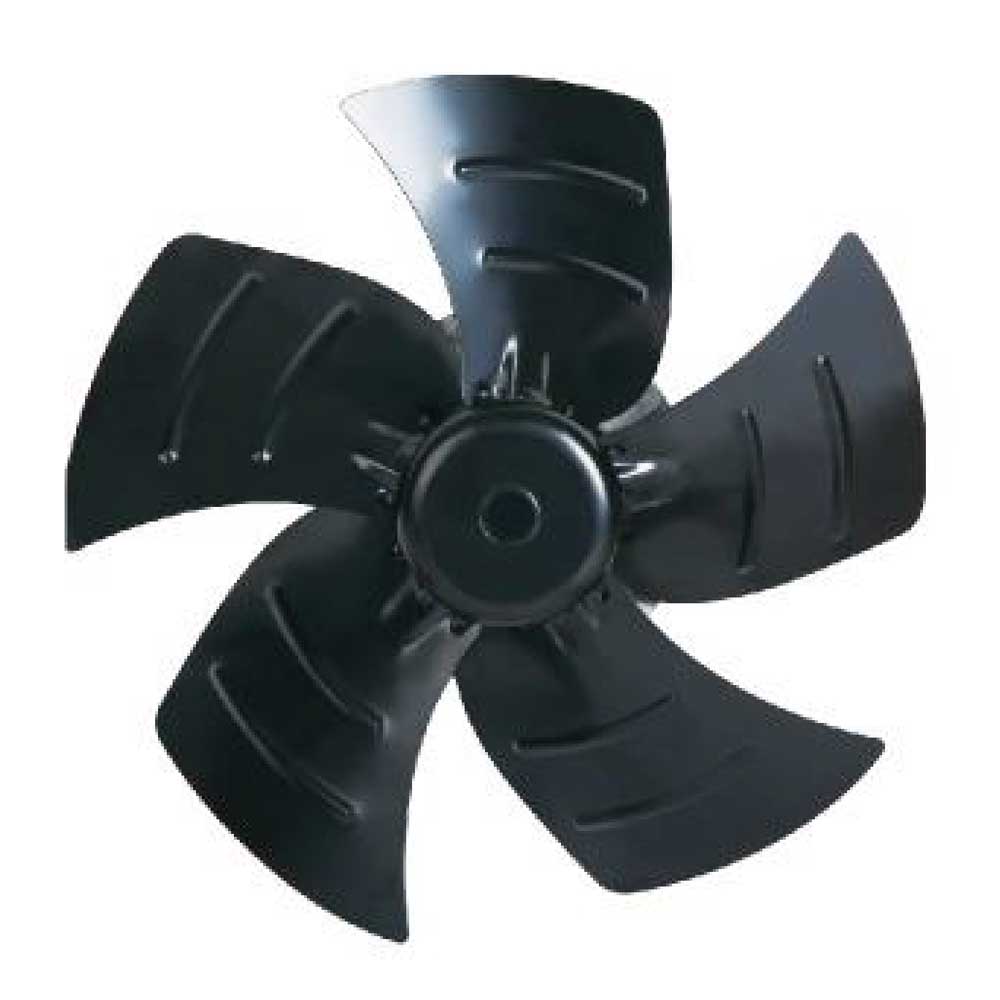

DIAM.400, 230VAC, EXTERNAL ROTOR AXIAL FAN, 77.83 M3/MIN
Insulation class: F
Working temperature: -30°C/+60°C
Bearing System: ball
Life: n.d.
Certification: CE
Data prevista per la spedizione: 10-10-2024
€153.36 VAT excluded
Quantità disponibile: 1
Unità
Scontistica per unità
1-4
€ 153.36
5-10
€ 145.69
+10
Richiedi prezzo speciale
- Description
- specifiche
Description
Single-phase and three-phase external rotor axial fans are mainly used in industrial ventilation and commercial refrigeration.
The fan blades, in thermoplastic material or steel, have been designed to obtain a compact high efficiency fan.
Features:
Power supply 230V – 50/60Hz
Working temperature between -30° C e + 60° C
Insulation class F
p/n fanlab FL-4M400V230-HP
Size (mm)
ø400
Voltage (V)
230V AC
Frequency
50/60 Hz
Current (A)
1.3
Input (W)
270
Speed (rpm)
1600
Capacitor
8µF
Noise (db/A)
69
Air flow direction
sucking
