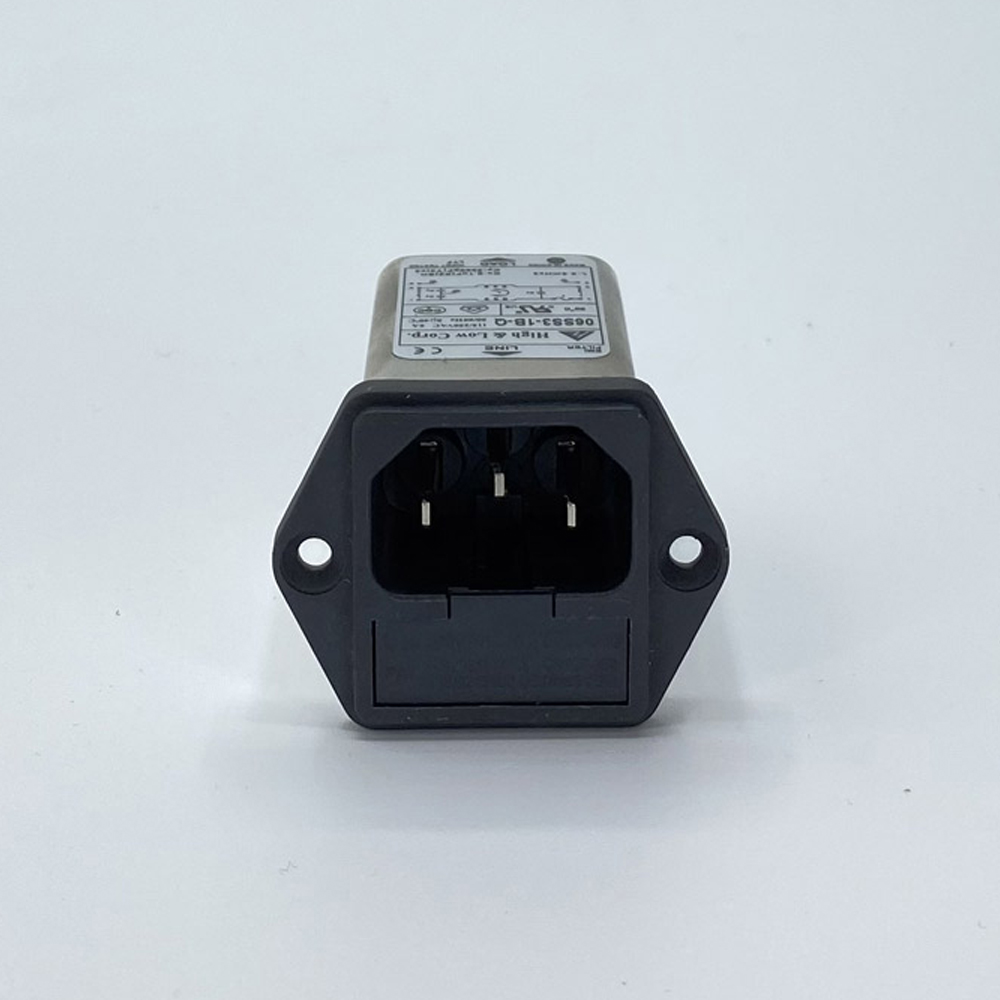

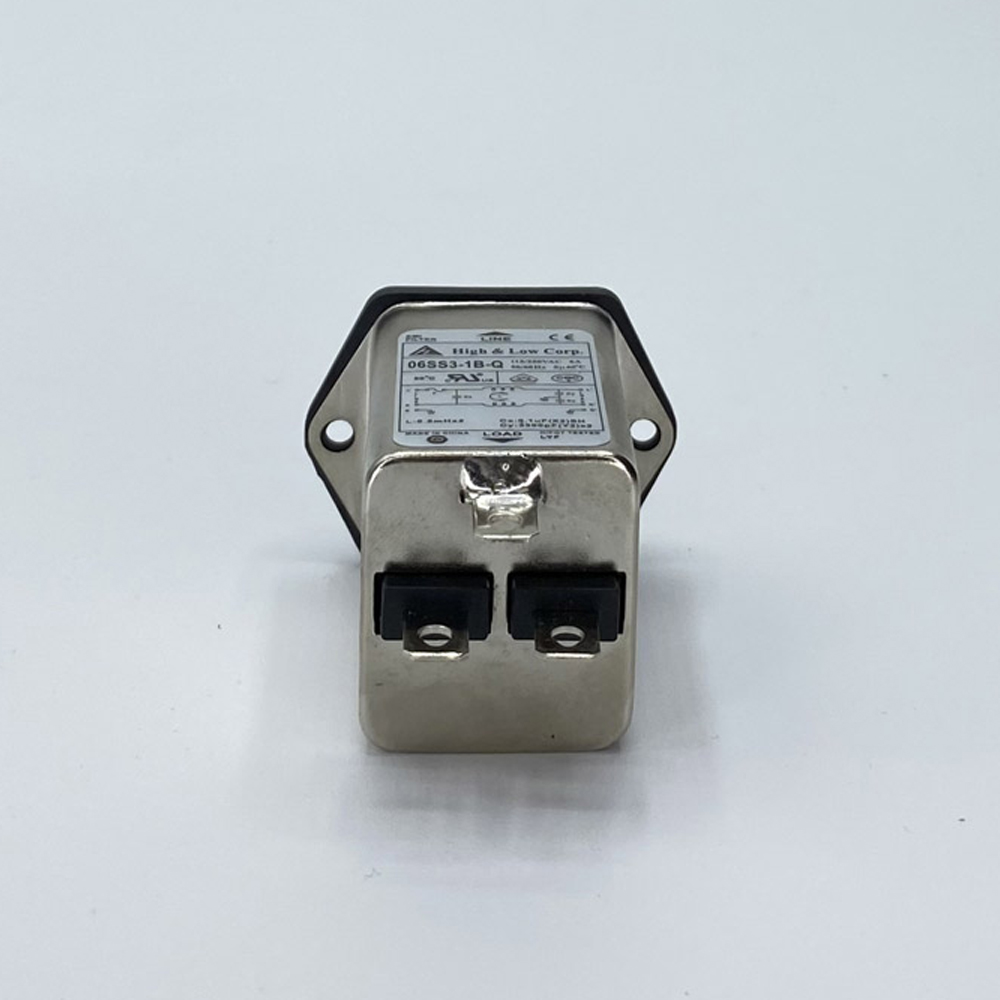

3A IEC INLET FILTER EMI, IEC C14 250 V C.A., SCREW WITH FUSE
fron 1A to 10A (cUL)
fron 1A to 6A(VDE-SEMKO-CE-CQC)
Voltage 115/250V AC – 50/60Hz
Climatic category: HPF 25/110/21
Maximum leakage current:
@115VAC 50/60Hz: 2uA
@250VAC 50/60Hz: 5uA
Hi-pot L-N: 1450VDC
Hi-pot L-G: 4000VDC
Data prevista per la spedizione: 24-10-2024
€20.11 VAT excluded
Quantità disponibile: 35
- Description
- specifiche
Description
The EMI filter, also called anti-interference filters, is the key element to eliminate interference from the electrical system and are available in a wide range of types that differ in electrical, mechanical and wiring diagram specifications.
The IEC Inlet Filter are used in computers, monitors, printers and medical devices. The filters combine the classic IEC socket with the performance of the interference suppression filter. The iec filters are also available in combination with switches and fuse holders.
Compact high performance filter
Excellent shielding thanks to the completely closed filter container
Designed for medical applications
IEC input male connectors with integrated mains filter. Designed to filter out mains interference in cases where capacitors alone prove inadequate.
Connection via faston 6.3
Voltage 250 V AC max.
Operating frequency 50/60 Hz.
