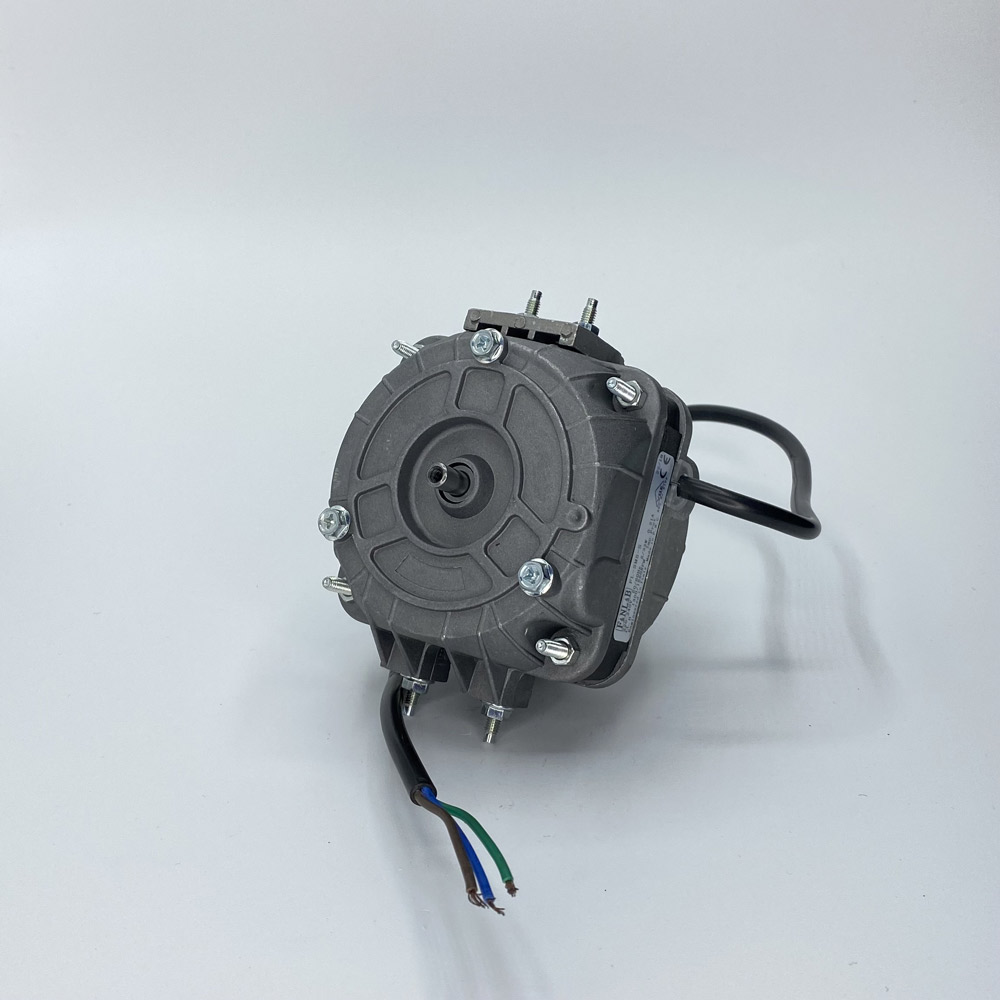

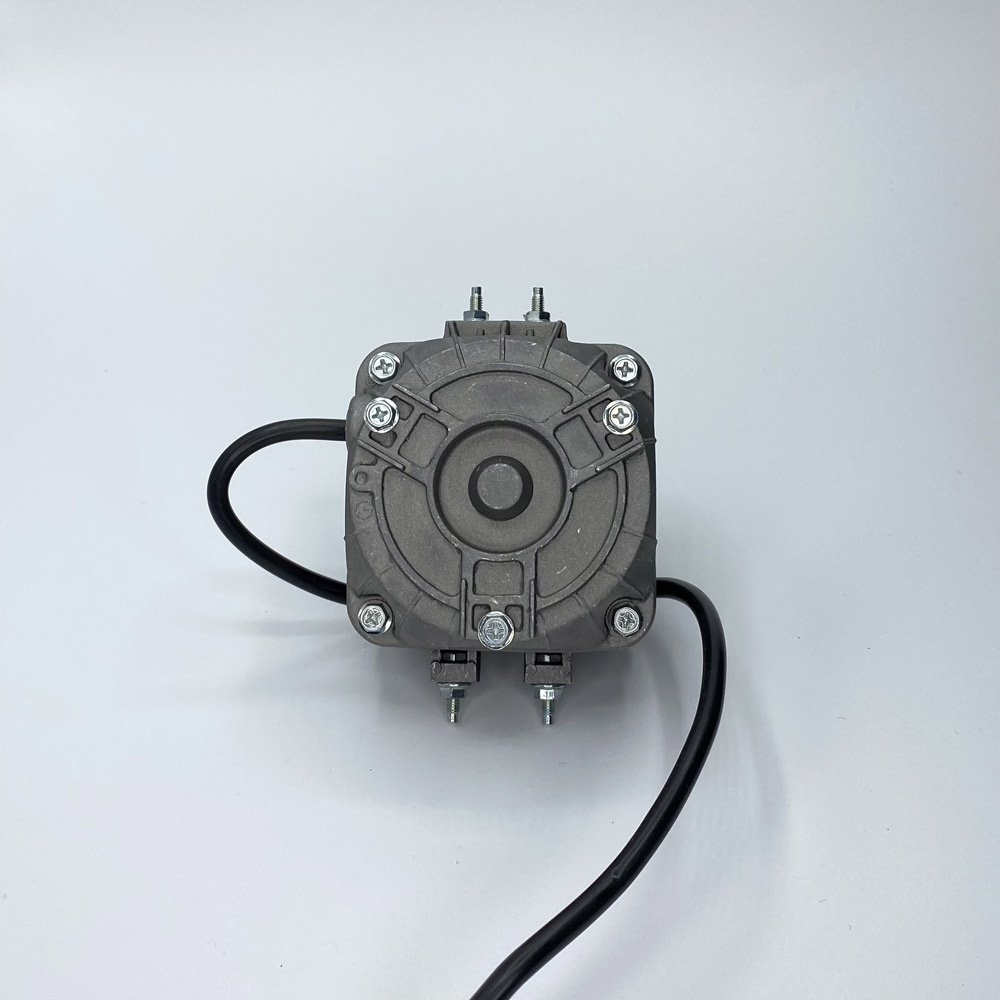

MOTOR FAN 5W,FANLAB, 1300/1550RPM 4 FIXING POINTS

MOTOR FAN 5W,FANLAB, 1300/1550RPM 4 FIXING POINTS

Original price was: €23.27.Current price is: €20.94. VAT excluded

In stock

Tensione: 230V AC
Output power: 5W
Protezione: IP40
Duty cycle: S1
Temperatura di lavoro: -30° ~ +60°
Bearing: Sleeve bearings
Vita: 20.000 hours
Certificato: CE, VDE

Chiama per assistenza 039 6250932

Original price was: €23.27.Current price is: €20.94. VAT excluded

Codice Produttore: FL-SM5-26/18-S
Availability: 11 in stock SKU: FL-SM5-26/18-S Categories: , ,
Marca:

Description

Single-phase shaded pole motors, are widely used in radiator, evaporator and other refrigeration equipment.
The motors have a single-phase power supply and are available with 5 fixing modes for every application need and power from 5W to 34W.
The 5W and 10W motors are impedance protected, while the 16W, 18W, 25W and 34W motors are heat protected.
The standard construction is supplied with sleeve bearings. Ball bearings on request.

FEATURES:
Standard power supply 230V – 50 / 60Hz (110V available)
Insulation class B
Protection: IP42 (IP44 on request)
Bearing: Bushing (bearing upon request)
Certificate: CE, VDE

Fixing
4 fix point – 26/18mm
Voltage (V)
230V AC
Frequency
50/60 Hz
Current (A)
0.20
Input (W)
33
Output (W)
5
Speed (rpm)
1550
Max air flow (m3/h)
510
Blade (mm)
diam. 200/28°(MAX)
Weight (gr)
0.8
