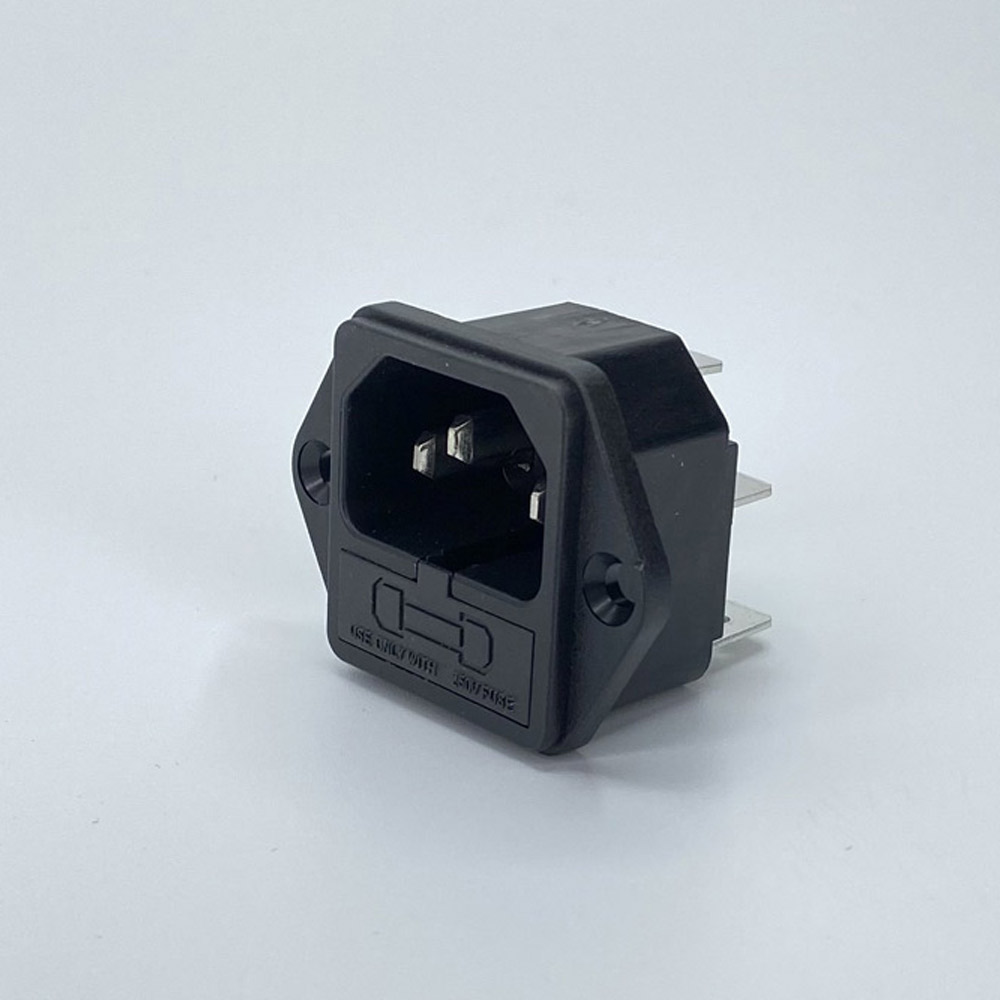

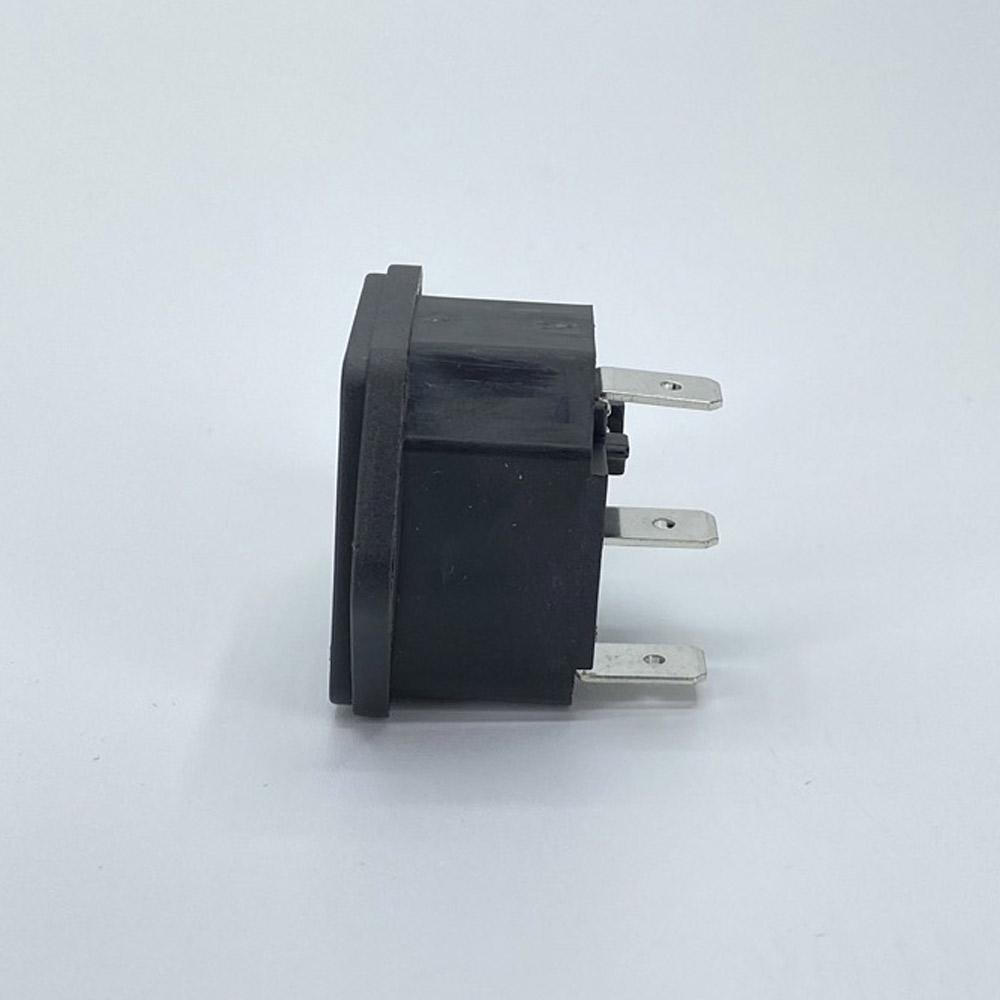

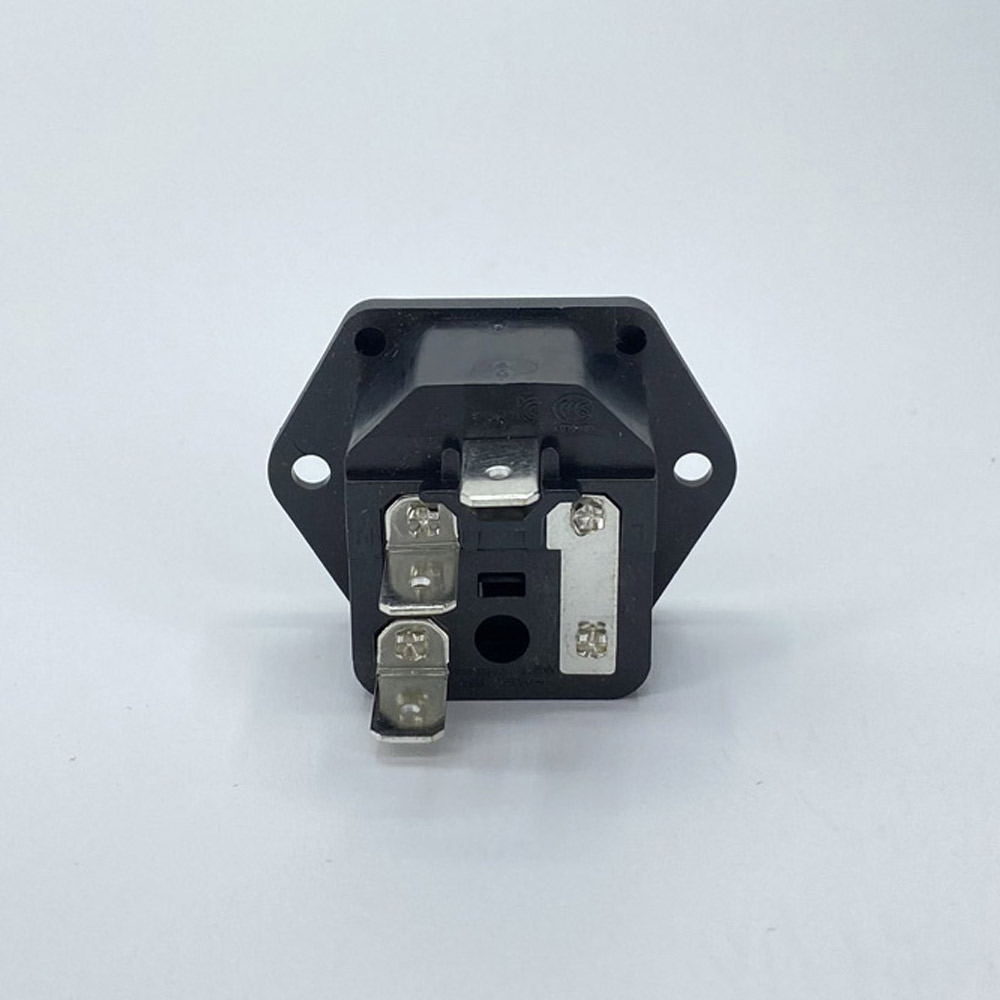

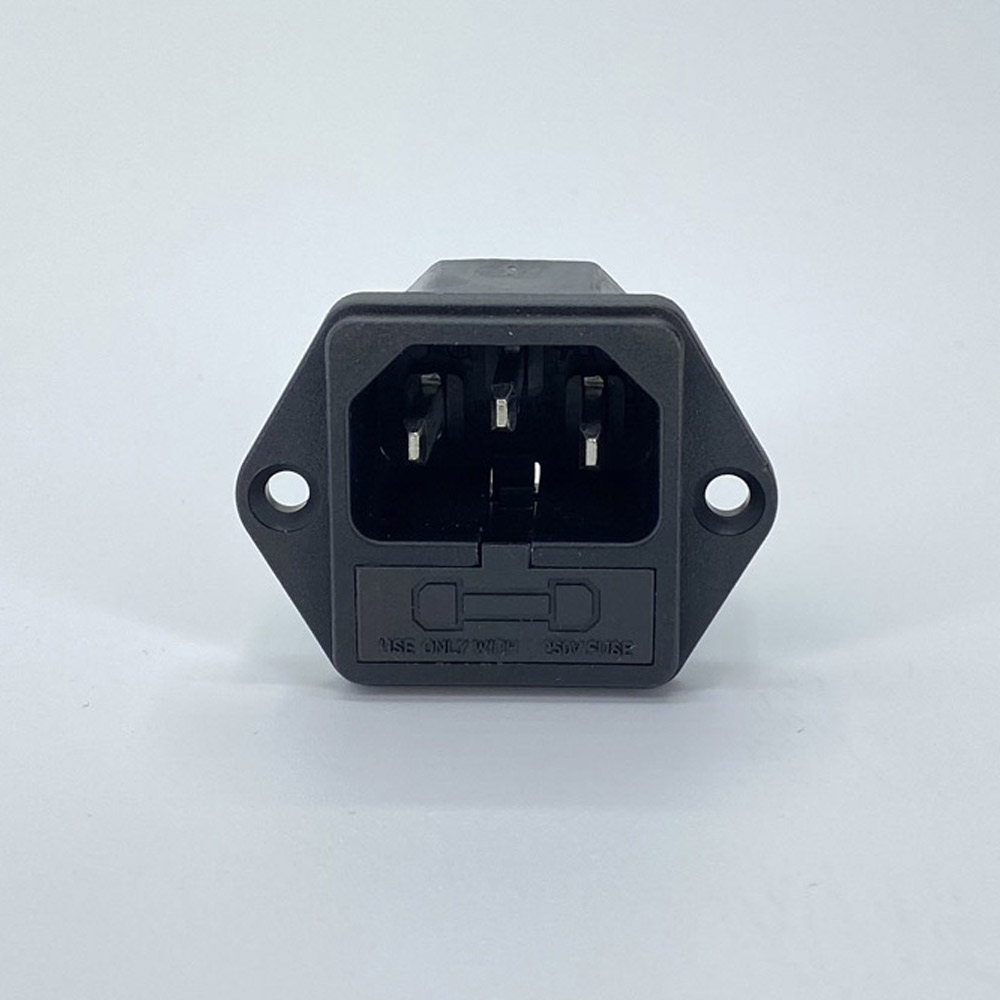

IEC C14 MALE CONNECTOR, 10A, 250VAC SCREW, 1 FUSE 5X20
EN60320 C14
T 70°C
10A – 250 VAC (UL-CSA-ENEC-CCC)
Thermoplastic UL94V-0
Fuses not included available in the electronic chapter 520 series
Data prevista per la spedizione: 24-10-2024
€2.51 VAT excluded
Quantità disponibile: 60
- Description
- specifiche
Description
A range of fused screw panel mount IEC C14 mains input connectors, for use with C13 plugs, with single and double fuses where indicated.
The C13 or C14 socket model is used for larger electrical equipment such as kitchen appliances, amplifiers for laboratory instrumentation, etc.
Features and Benefits:
• High quality UL94-0 thermoplastic female connector that ensures long life and safe operation
• Mating contacts in tin-plated alloy
• Wide range of safe operating temperatures from 0 ° C up to 70 ° C
• Rated current 10 Amp (UL, CSA, ENEC, CCC), 250 V AC.
• Contact resistance 30 m&omega max, for the fuse holder 10 m&omega max
