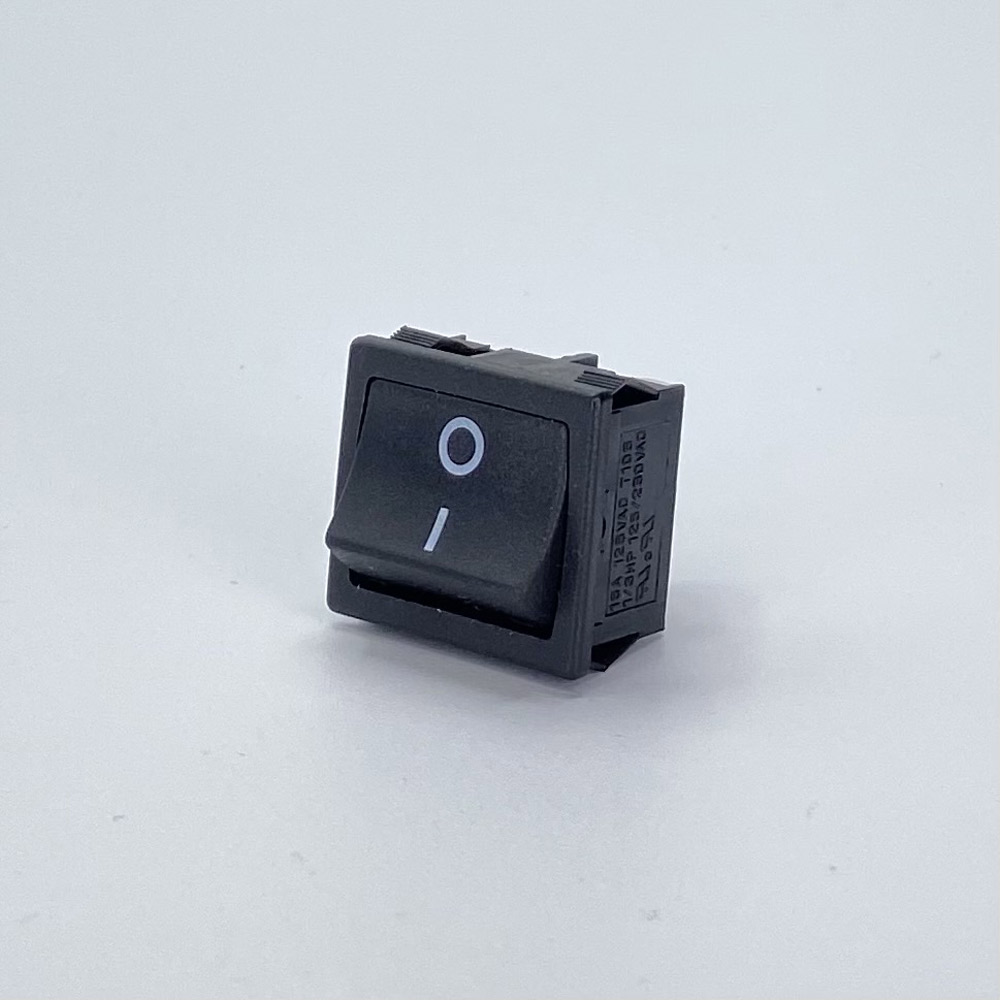

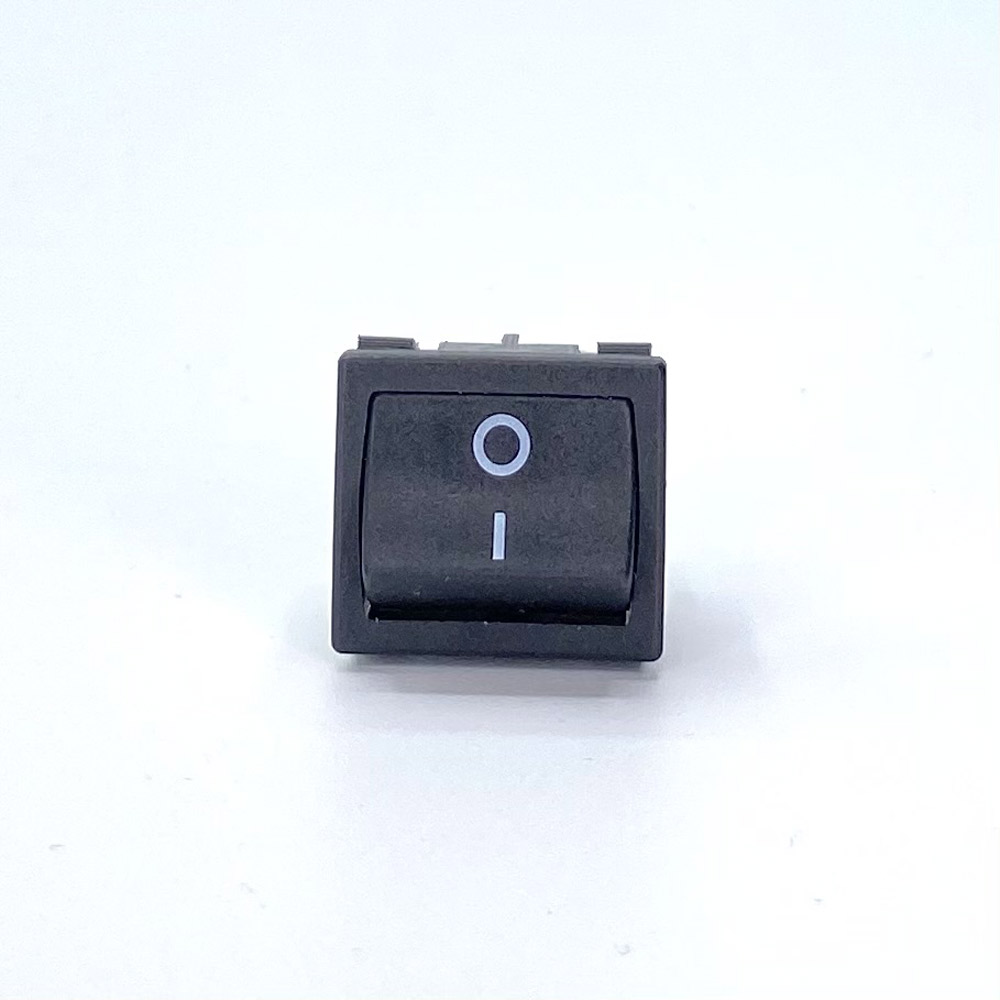

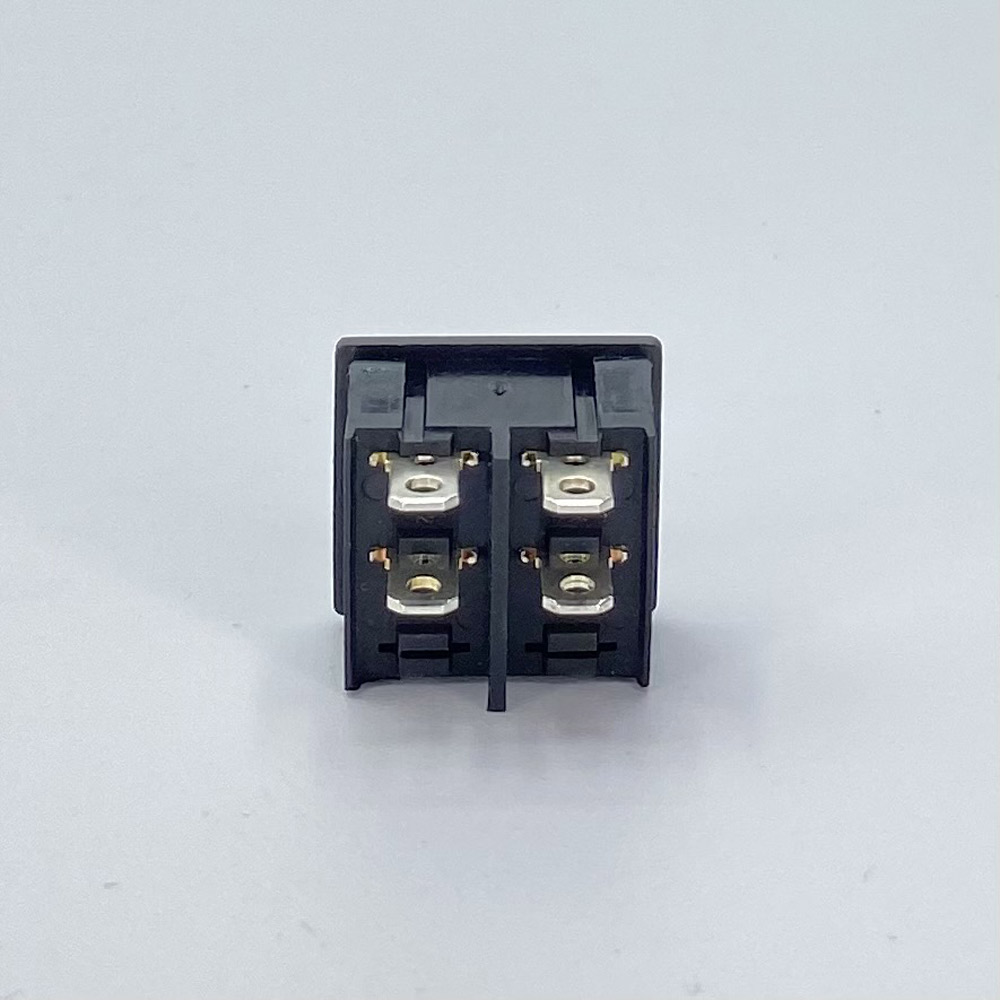

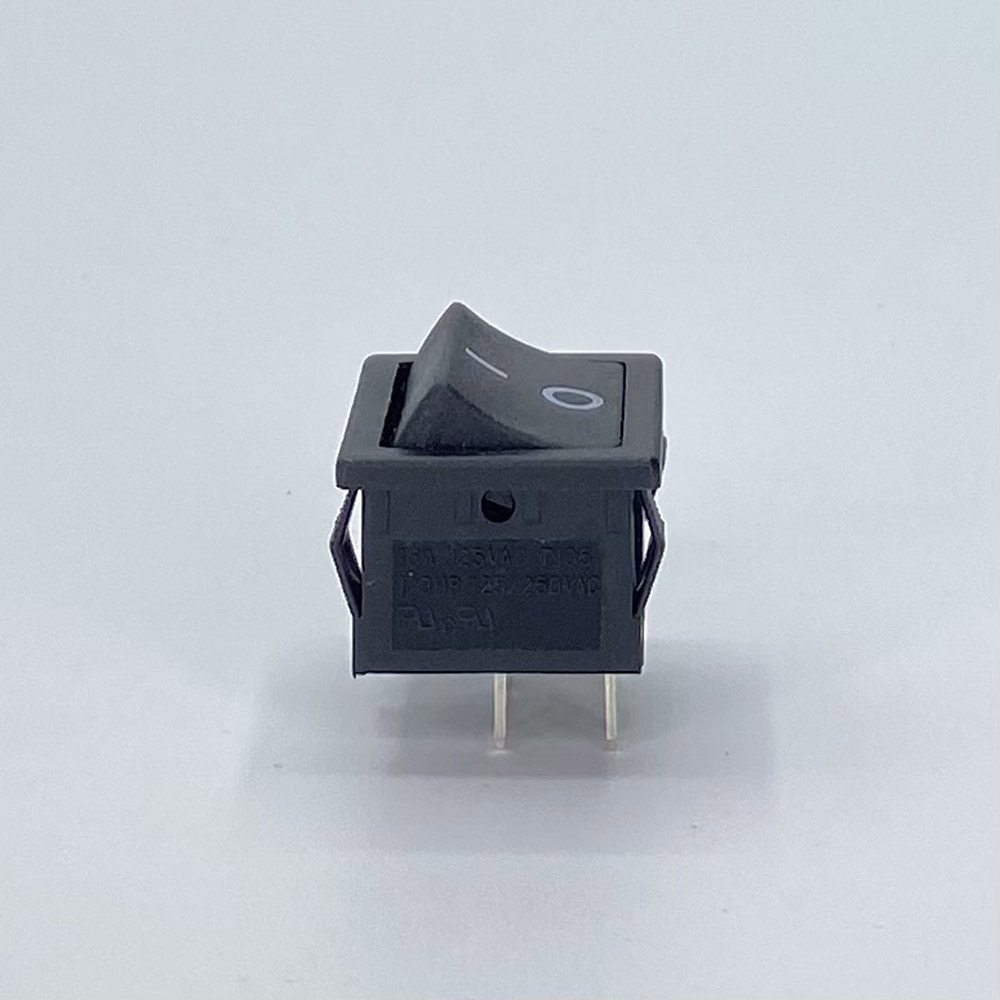

ON-OFF, 10A NON-LUMINOUS, BIPOLAR, RECTANGULAR SWITCH,

62nbbs0901 interruttore nero rettangolare biipolare nero on-off

ON-OFF, 10A NON-LUMINOUS, BIPOLAR, RECTANGULAR SWITCH,

2.08 Iva esclusa

In stock

Configuration: DPST
Circuit: ON-OFF
Nominal value:
(ENEC-SEMKO)
10(4)A 250V AC T125/55 1E4
10(2)A 250V AC T85/55 5E4
(UL-cUL)
16A 125V AC T105 1/3HP

Chiama per assistenza 039 6250932

2.08 Iva esclusa

Codice Produttore: RL3-2
Availability: 19 in stock SKU: 62NBBS0901WT10 Categories: ,
Marca:
View cart

Description

Rocker switches are one of the most widely used electrical switches present in the industrial sector today. Their simple design ensures maximum flexibility and reliability.
The 62 series rocker or rocker switches are rectangular in shape with a 22.2×19.4 (+/- 2) mm drilling template and panel mounting.
The light switch with I / O screen printing often used in household appliances such as: refrigerators and freezers, household appliances coffee machines and kettles.

Features:
Circuit: ON-OFF (DPST)
Contact resistance: <30m Ohms Working temperature: -25 ° C / + 125 ° C

Switch
Illuminated
Poly
2
Form
Rectangular
Circuito
ON-OFF
Printing
I/O
Rated current
10A
Panel drilling dimensions
22.2x19.4
Base color
Black
Colore bascula
Black
Lamp voltage
-
