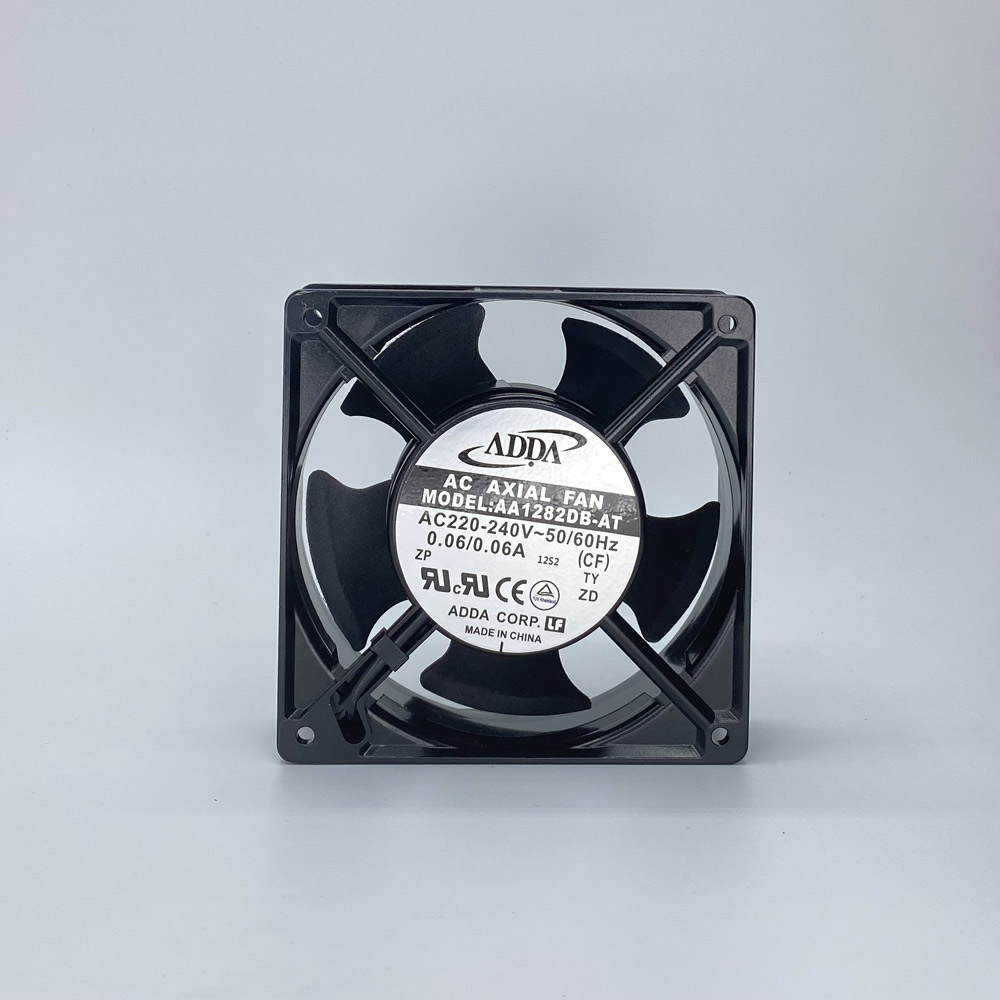

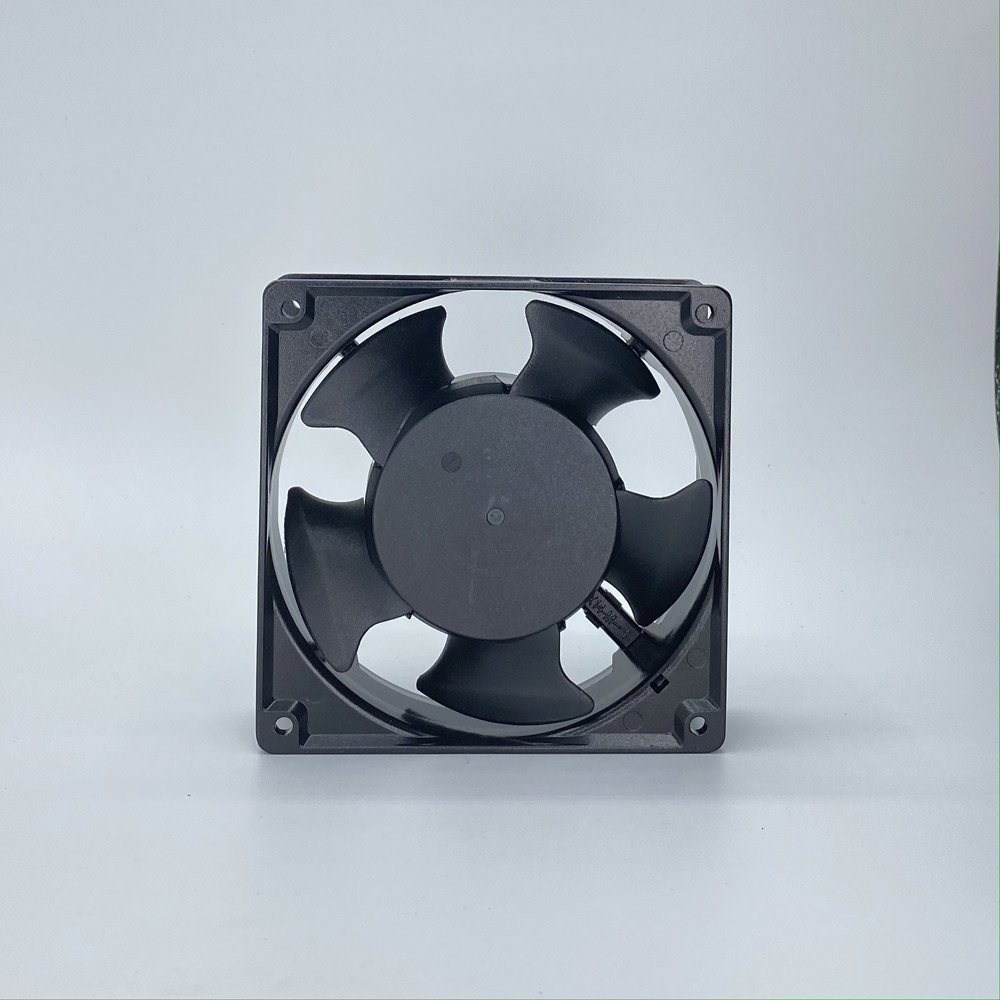

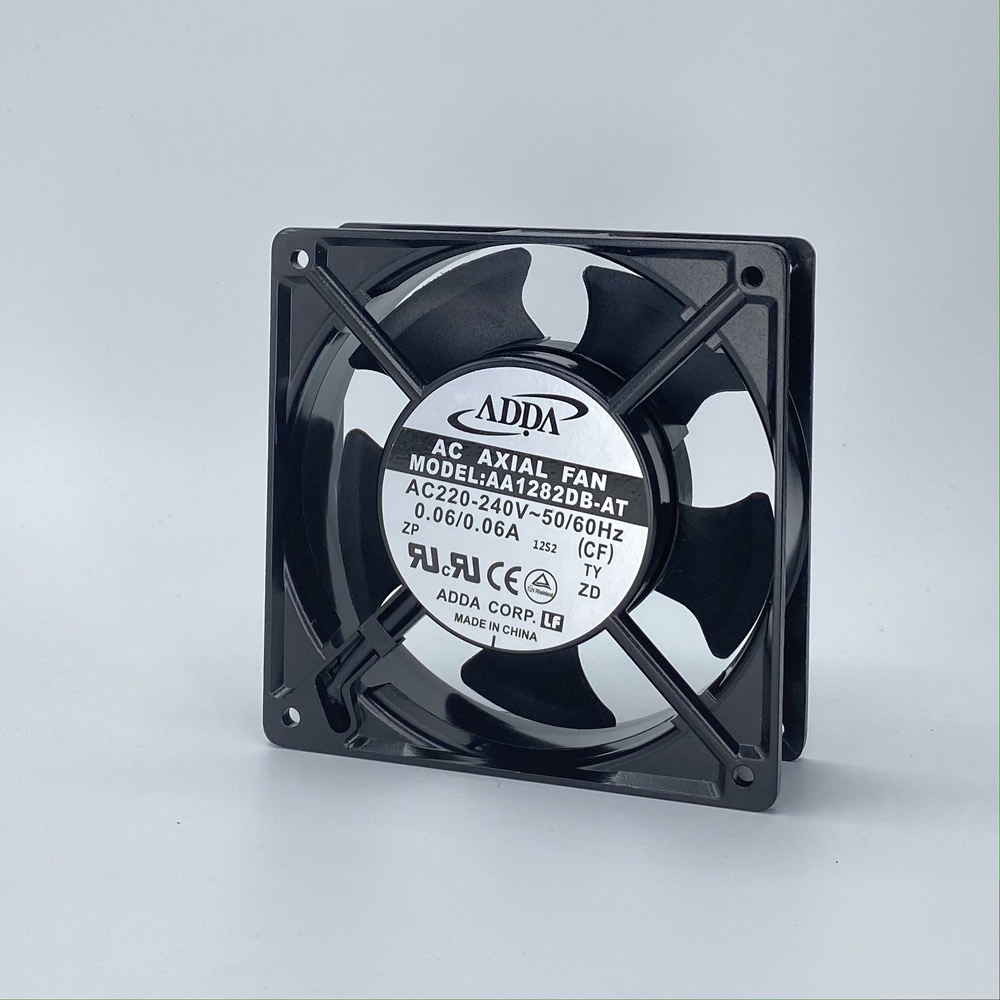

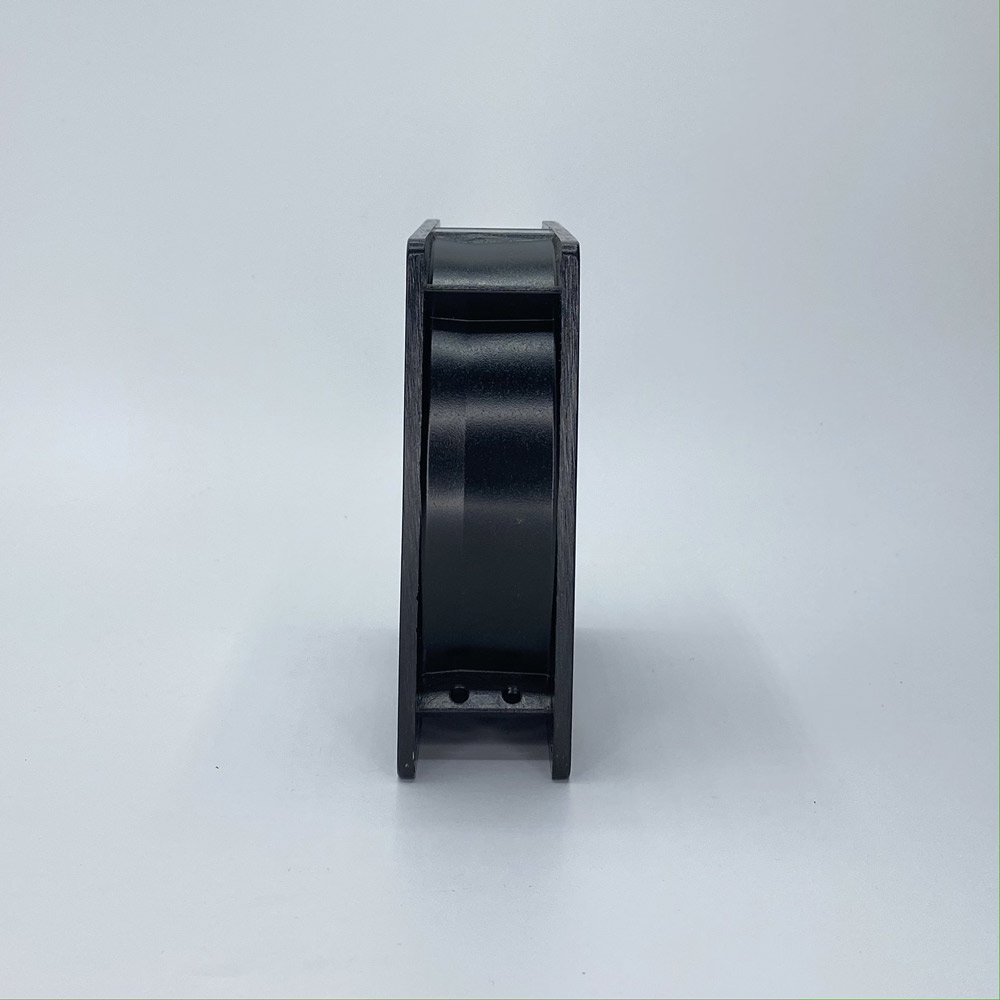

120X120X38 AC AXIAL FAN 230VAC, ADDA 1.98M3/MIN, 2300RPM

12032abtdad ventola assiale 230v 120x120x38 xfan 2300rpm

120X120X38 AC AXIAL FAN 230VAC, ADDA 1.98M3/MIN, 2300RPM

16.79 Iva esclusa

In stock

Size: 120x120x38
Voltage: 230VAC
Bearing System: ball
Terminal: Faston
Material: UL94 V-0
Life: 50.000h at 25°C
Working temperature: -40 ° C / + 70 ° C
Certification: UL – cUL – TUV – CE

Chiama per assistenza 039 6250932

16.79 Iva esclusa

Codice Produttore: AA1282DB-AT(CF)
Availability: 13 in stock SKU: 12032ABTDAD Category:
Marca:
View cart

Description

ADDA is one of the main market leaders in the production of compact AC axial fans and shielded pole motors

Compact AC fans have always found great application for cooling in the electronics sector and are used for both cooling and suction in applications ranging from refrigerated display cases, to electrical panels or racks.

The compact design allows installation even in the most confined spaces such as in electrical panels or fireplaces (axial fans in metal resistant to high temperatures).
Accessories such as filters, grids or fasteners are also available.

ADDA fans are characterized by:
High quality construction
Reduced noise
Greater efficiency
Extended engine life
RoHS compliance

Size (mm)
120x120x38
Voltage (V)
230V AC
Bearing System
Ball
Terminals
Faston
Current (A)
0.04
Power (W)
8.1
Speed (rpm)
2300
Max air flow (m3/min)
1.98
Max air flow (CFM)
70
Max pressure (InH2O)
0.13
Max pressure (mmH2O)
3.302
Noise (db/A)
39.2
Weight (gr)
550
