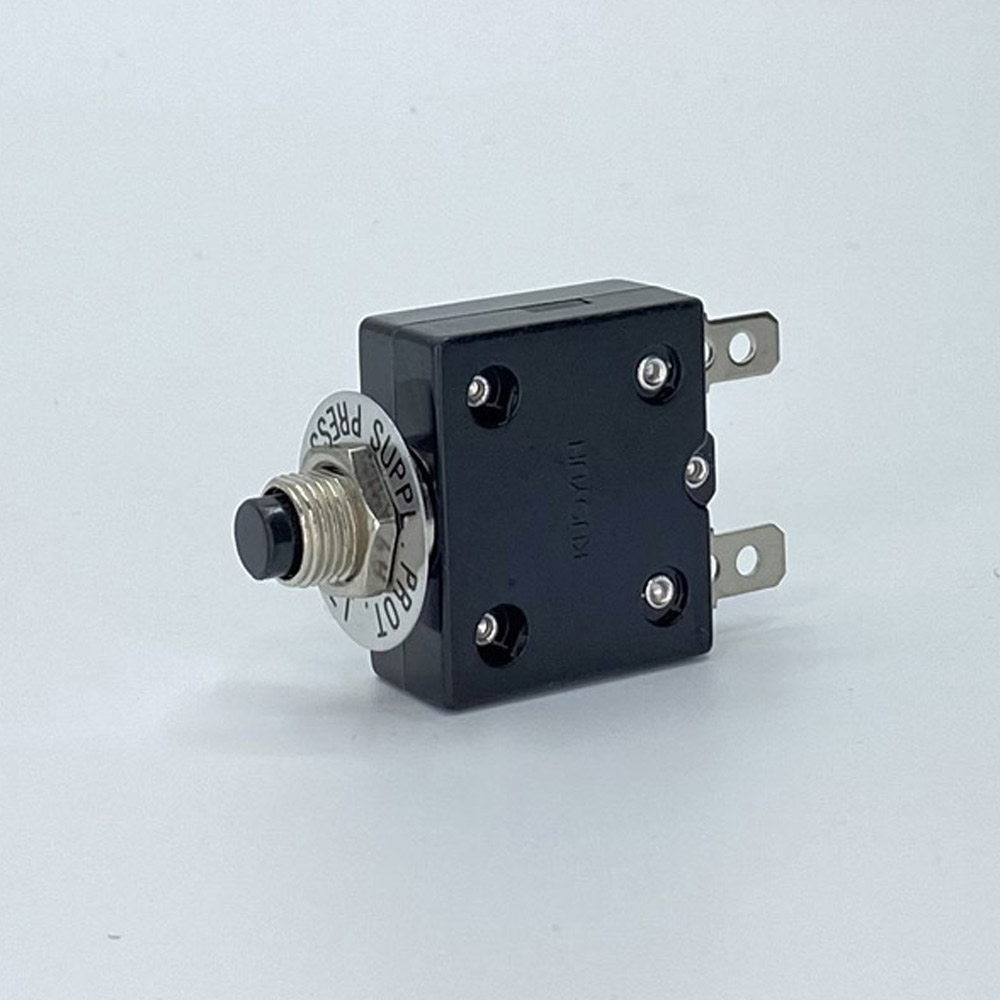

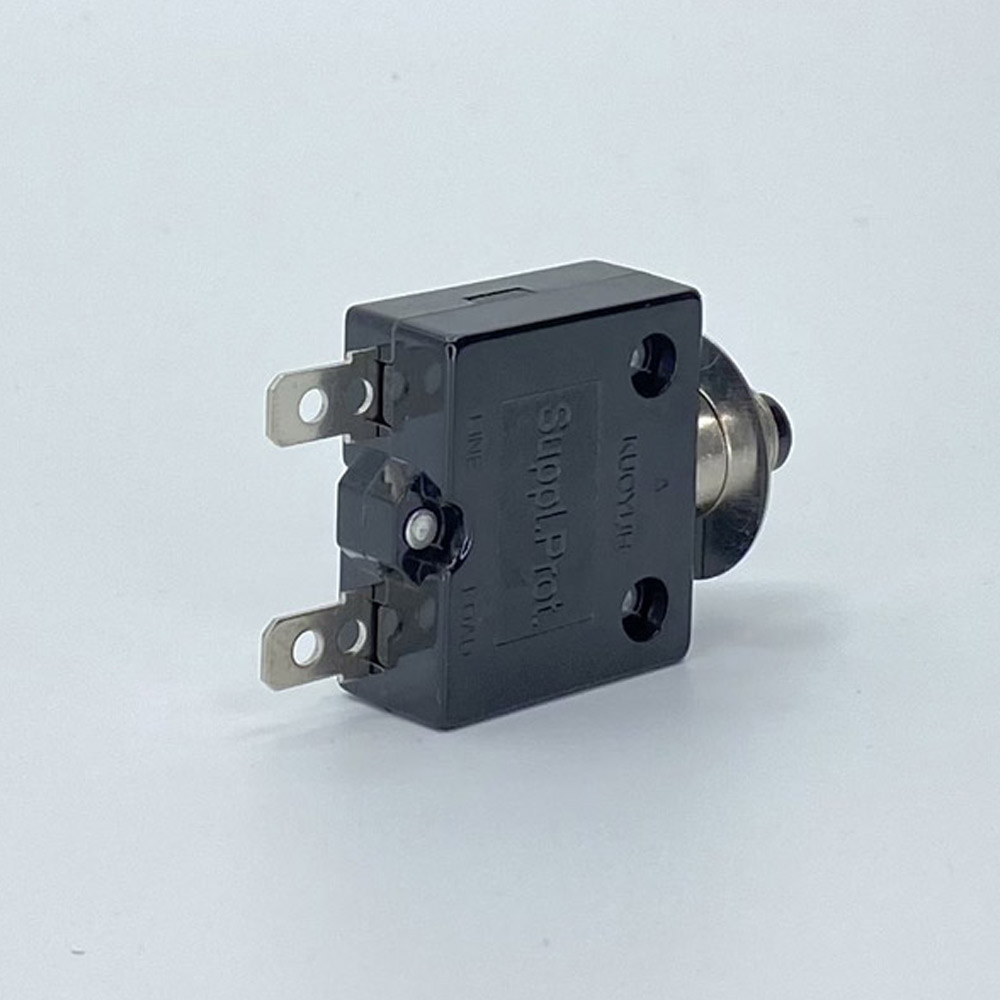

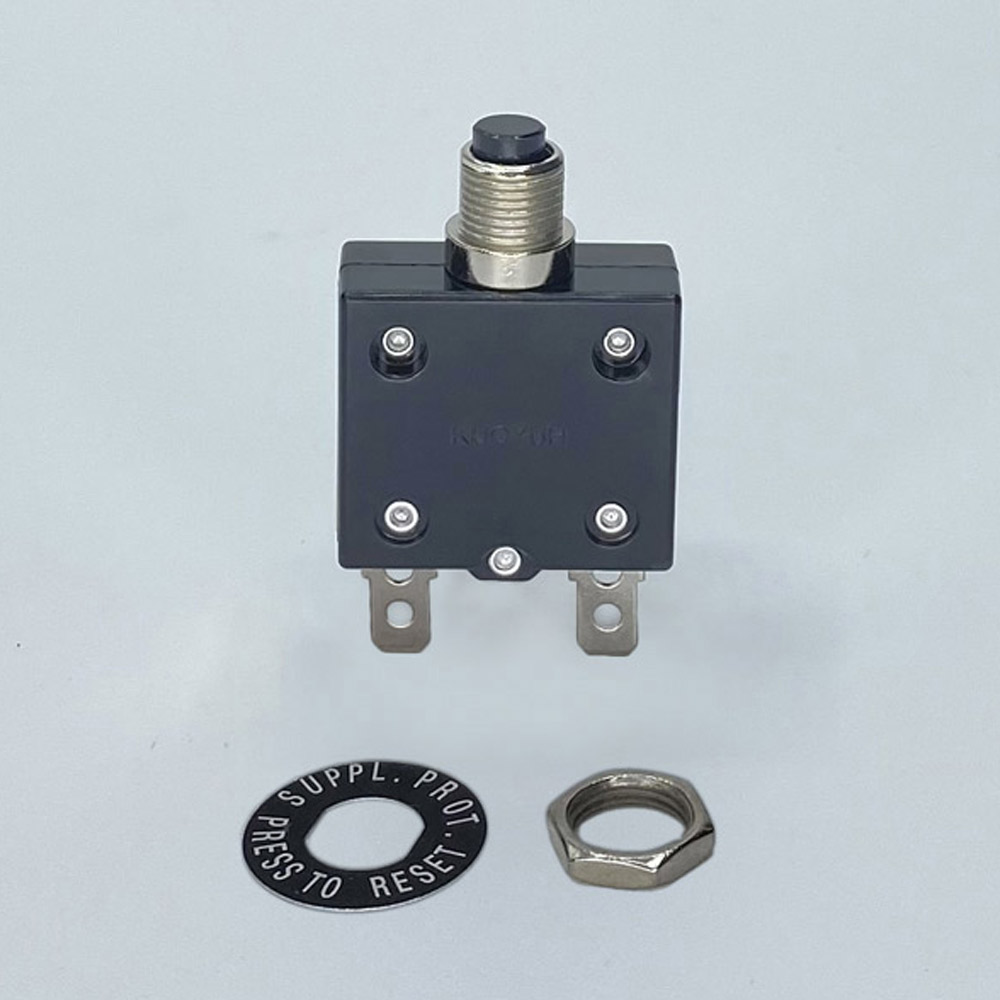

THERMAL SWITCH K700 2-40A
3A – 30A 125/250V AC (UL)
5A,10A,15A,20A 125/250V AC 50 V DC (TUV)
Data prevista per la spedizione: 12-09-2024
€3.23 – €4.03 VAT excluded
Unità
Scontistica per unità
1-4
€ 3.23
5-14
€ 3.07
15-30
€ 2.91
+30
Ask for special price
- Description
- specifiche
Description
The thermal switch is an electrotechnical device capable of breaking an electrical circuit in the event of an overload overcurrent.
Single hole panel mounting with M11 (mm) threaded neck
The terminals are faston 6.3
Manual reset
Dielectric Strength: 1500V AC / 1min
Opening rate: 125VAC x 1000A, 250VAC x200A
Contact life: 125VAC x 150% In, 500 cycles
Mainly used for motors, transformers, power supplies and very low voltage systems
Hood available on request
Series
K700
Current (A)
10, 11, 12, 13, 14, 15, 16, 18, 20, 25, 3, 30, 4, 40, 5, 7, 8, 9
